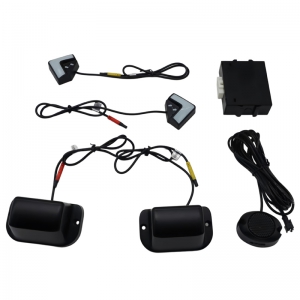

24GHz Radar Sensor Vehicle BSD Blind Spot Detection System uses the 24GHz millimeter-wave radar technology, the use of ultra-computing technology, high-speed travel in the data supercomputing, accurate detection of vehicles on the left side of the rear high-speed close to the distance of the vehicle, Vehicle real-time detection, when the vehicle is in a dangerous blind spot, the system through the buzzer and LED sound and light alarm, promptly notify the owner to take the necessary measures to avoid the accident
Specification:
* Working Voltage: DC 9V-36V
* Working Current: <120mA
* Detection Speed Range: 1km/h~120km/h
* Maximum Detection Range: Trucks: 0.3m~15m
Cars: 0.3m~15m
Motorcycles:0.3m~15m
Pedestrians:0.3m~10m
* Speed Restriction:
1) There are 4 speed restriction options: 5 mph, 10mph, 15mph, 20 mph. Default is 10mph.
Please see below (from 1-4 switch, it could control 4 speed restriction)
Switch1=5mph,Switch 2=10 mph, Switch 3=15 mph, Switch 4=20 mph.
2) If no GPS signal be detected or satellites not found,the system will be active at any speed
Remark: This function is optional. If select the speed control version, the speed control as left sheet. Standard package is without GPS
* Buzzer Alarm Mode: LED+Buzzer Alarm
* Horizontal Detection Angle: 52°
* Water Proof: IP67,Cable:not waterproof
* Working Temperature: -30℃~+85℃
* Storage Temperature: -40℃~+105℃
