AI Recognition 720P AHD Side View Camera
Product Parameter:
Image Device: 1/3”CMOS
Frame Rate: 25 FPS
Effective Pixels: 1280 (H) x 720 (V)
Pixel Size: 3.75 μm x 3.75 μm
Scanning System: Progressive Scanning
Sync. System: Internal
Resolution: 720P
Video Output: 1.0Vp-p, 75Ohm
Gamma Consumption: 0.45
AGC: Auto
Dynamic rang: 83dB
White Balance: Auto
Electronic Shutter: 1/25 ～1/50,000 Seconds
BLC: Auto
Operating Temperature: –20℃ ~ 70℃, RH95%MAX.
Storage Temperature: –40℃ ~ 80℃, RH95%MAX.
Power Supply: DC12 (24 optional)
Waterproof rating: IP69K
Viewing Angle: 160° (Max.)
Audio: No, the audio channel take by alarm
Minimum Illumination □ 0.01 Lux/F1.2 □0 LUX with IR
Image mode Mirror/Normal

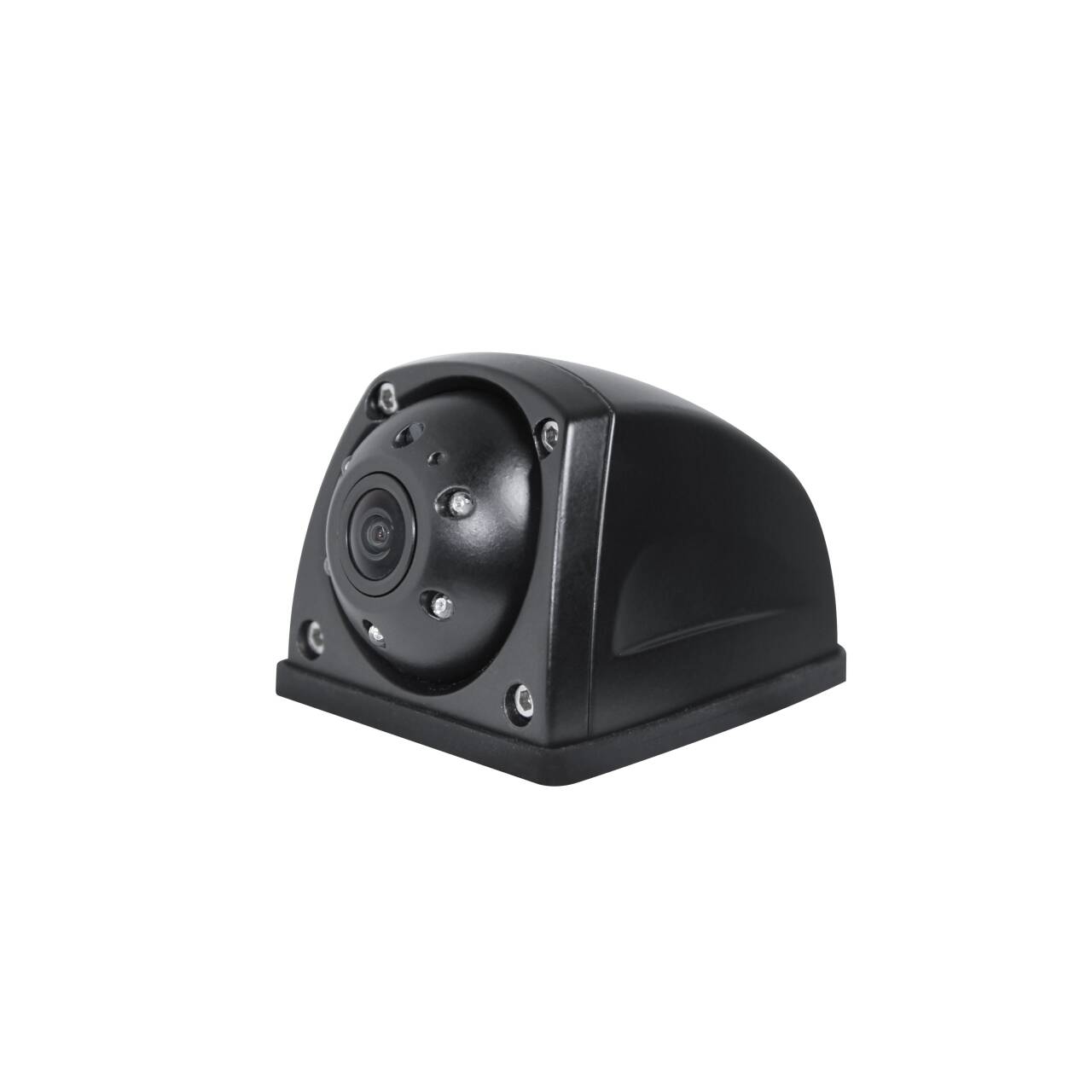

Product Image:
