Single chip design, integrated ADAS, DSM, BSD
Support Operate and Maintain by Maintenance Tool
H.265 video encoding, high compression ratio, high image quality,save more storage spaces and save more bandwidth when transmitting data
Supports 4CH 1080P/720P AHD
Support AHD/TVI/CVI/IPC/ Analog video inputs
Built-in G-sensor, monitoring of vehicle driving behavior
Support reversing image ranging assistance
Support image horizontal and vertical mirror adjustment
Unique GPS drift suppression algorithm
Input pulse automatic calibration algorithm
Power supply:
Professional vehicle power supply 9-36V DC wide voltage
Low voltage, short circuit, reverse connection and other protection
Support intelligent power management identification, low power automatic shutdown, flameout low power consumption

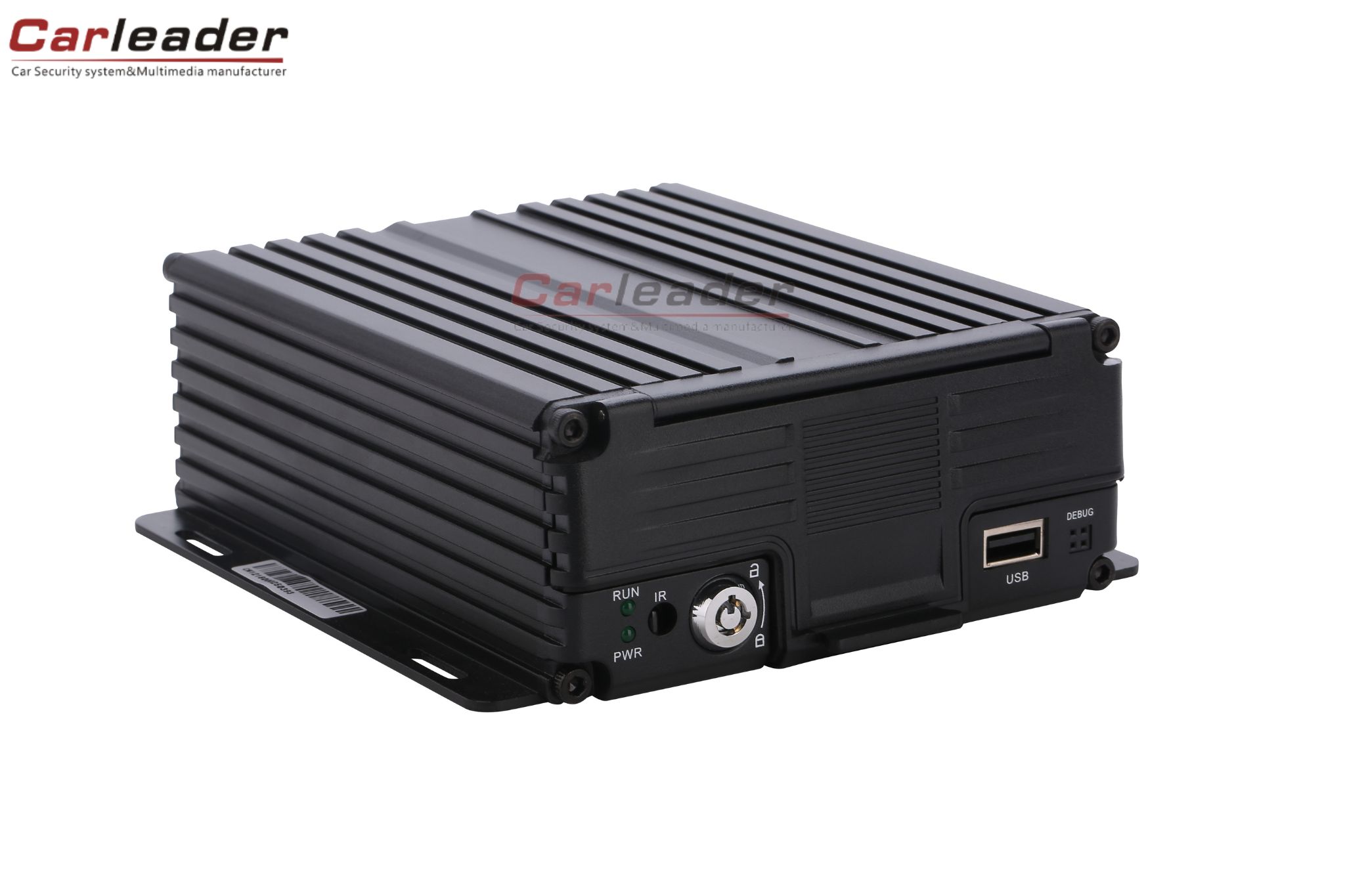

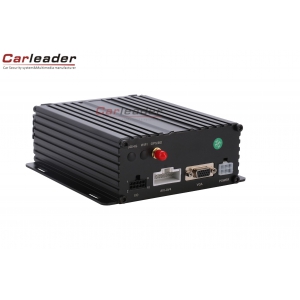

Parameters of CL-MR9704 4CH(HDD) AI MDVR:
|
Type |
Parameters |
Performance indicators |
|
system |
System |
Embedded Linux operating system |
|
Language |
Chinese/English Etc... |
|
|
Interface |
Graphical menu operation interface, mouse operation |
|
|
Audio and video |
Video input |
4 CH 1080P AHD/TVI/CVI/CVBS |
|
Video output |
VGA+CVBS |
|
|
Audio input |
4 CH |
|
|
Audio output |
2 channel analog output (2W) |
|
|
Video formats |
PAL/NTSC |
|
|
Video compression |
H.264/H.265 |
|
|
Video resolution |
1080P/720P/960H/D1/CIF |
|
|
Video quality |
Grades 1 to 6 |
|
|
Audio formats |
G711A G711U G726 |
|
|
Video and playback |
Storage |
HDD & SD |
|
Video query |
Search by channel, video type and alarm type |
|
|
Video playback |
Local 4 CH |
|
|
Local backup |
Supports SD cards and USB drives |
|
|
Physical interface |
Upgrade mode |
Manual upgrade, automatic upgrade, remote upgrade |
|
Upgrade way |
USB , SD card, network |
|
|

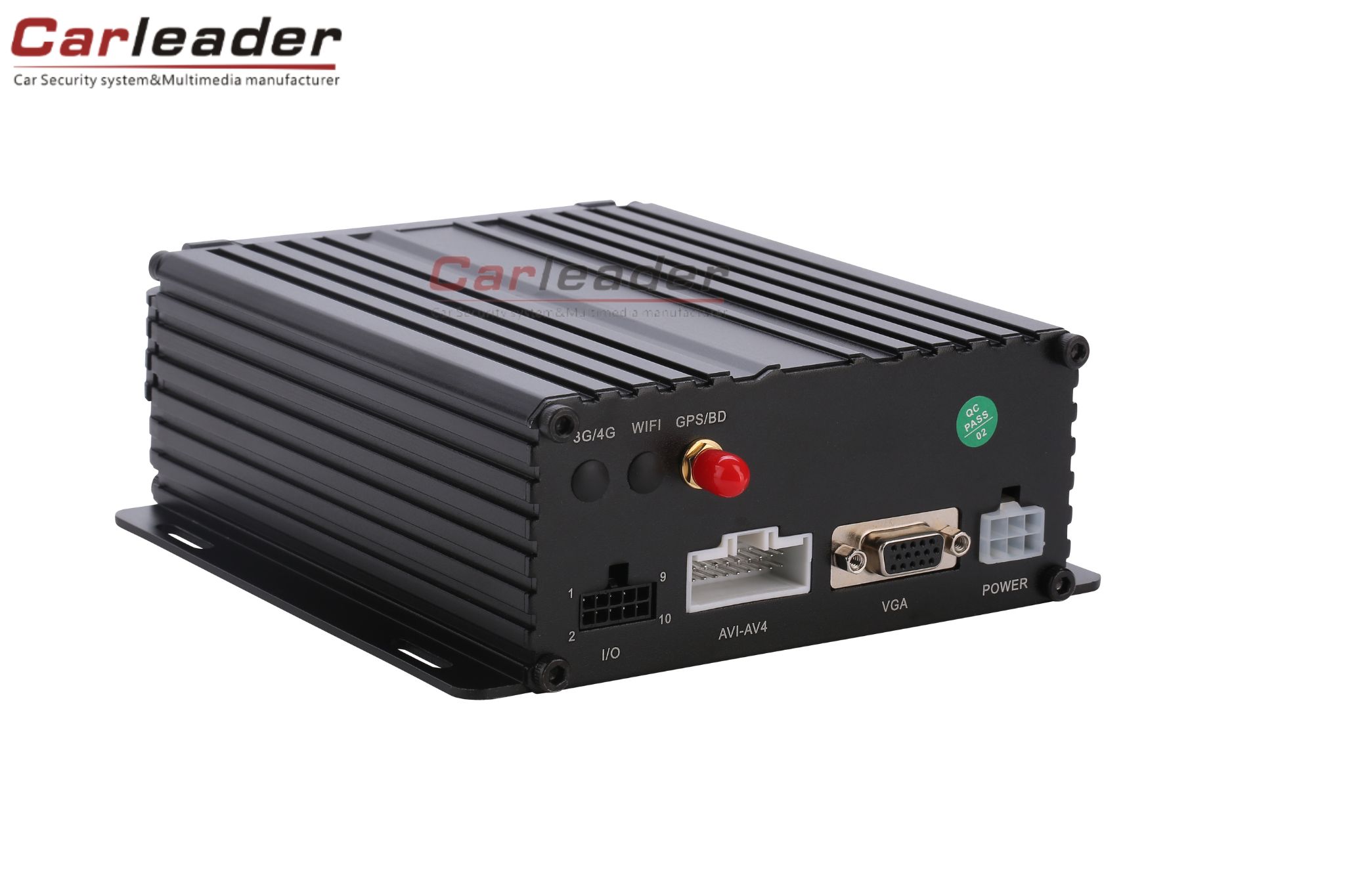

Audio/Video input |
4ch M12 aviation interface |
|
|
Audio/Video output |
1ch VGA video output, 1ch M12 aviation AV output |
|
|
Alarm input |
4ch inputs (4 Positive/Negative trigger) |
|
|
Alarm output |
2ch outputs,could drive relay(＜150mA) |
|
|
The speed pulse |
1 |
|
|
RS232 |
2 |
|
|
TTS interface |
4PIN MIC/SPK |
|
|
TTL |
NA |
|
|
RS485 |
1 |
|
|
Other interface |
LED light |
PWR/RUN |
|
IPC |
1*6 Pin M-12 aviation interface |
|
|
Storage interface |
1* HDD,1*SD card slot |
|
|
HDD interface |
1*2.5inch HDD, |
|
|
SD card |
1*SDXC card slot,support max 512 GB storage, |
|
|
Disk lock |
1 |
|
|
The wireless interface |
GNSS |
GPS/BD/GLONASS |
|
Wifi |
Optional WIFI module, 2.4GHz |
|
