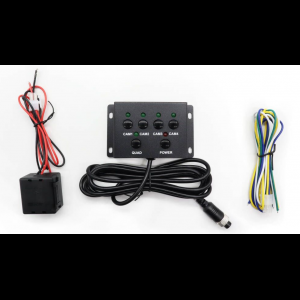

Product Parameter:
Support 4CH 1080P/720P/CVBS camera input and automatically segment the image
Output video resolution: AHD (720P) / CVBS
4CH camera can be triggered separately and displayed in full screen automatically
Priority display level CAM1/CAM2/CAM3/CAM4
Output power to cameras and LCD(12V)
Each image normal/mirror function can be set separately
Box working voltage :9V-32V
High and low voltage and overload protection
Video output connector: RCA/4P aviation
Support 720P/CVBS audio output
Can choose image of any channel of 4 cameras by trigger wire or hand
After cancelling trigger.the image is delayed for 2 sec. and returns to the state before the trigger
Support PAL/NTSC video format
Can automatically switch 2-Split or 3-Split image if only connect two or three cameras
Dimension: 155*87*32mm
