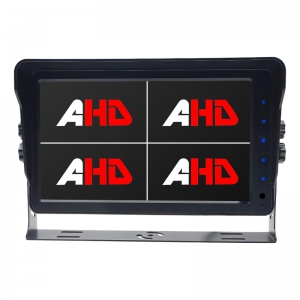

Introducing Carleader newly launched 10.1 Inch AHD Quad View Display Heavy Duty Commercial Bus Truck Monitor, a brand new AHD monitor produced by Carleader. This AHD quad monitor with 10.1 inch high digital panel, 16 : 9 aspect ratio, 1024 x 600 (RGB) resolution. 4CH AHD signal inputs with 4CH trigger wire. Offer driver a full and clear view of the vehicle surrounding environment.

This AHD quad monitor with built-in speaker, features with two different audio solutions:

A (default): only one channel with audio function: chose one channel with audio function (other three channels with no audio function) before production, and can not be changed.

B (Optional, extra charge): all four channels with audio function: In quad view display mode: only one channel with audio function (can be switched to other channel on monitor menu); In single display mode: no matter you switch to which channel (CH1/CH2/CH3/CH4), each channel with audio function.

Parameter:

10.1’’ large high digital panel

Resolution: 1024xRGBx600

Brightness :550 cd/m2

4 AHD video input( AHD1/AHD2/AHD3/AHD4)

Each channel has trigger wire.AHD2 has priority

Video input format: D1/720P/1080P HD25/30fps PAL/NTSC

Compatible with AHD/CVBS camera

4 channel with audio (Optional)

Built-in speaker optional

Auto dimming function optional

Supports channel cycle display function

Multi-languages multi-function OSD setting, remote control

Each channel has blue screen, blue screen can be selected by setting

Power supply: DC 9-32V

Detachable sunshade

Metal U type bracket default, bracket is optional

Dimension: 26.7 x 15.5 x 2.5cm ( without shade)

                26.7 x 16.5 x 6.5cm (with shade)
