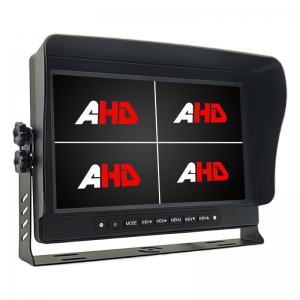

Name：10.1 Inch Waterproof Quad View AHD Vehicle Monitot with 4 Video Inputs

Model：CL-S1018AHD-Q

Brief：

* 7 inch digital panel, 16 : 9 image ratio, 1024xRGBx600 resolution

* 4 AHD inputs and 4 trigger wires, trigger priority: AHD2>AHD1>AHD3>AHD4

* Compatible with CVBS/720P/1080P camera, PAL/NTSC system auto switch

* Aluminum alloy housing, IP69K waterproof level

Description Parameters

Specification:

10’’ big digital Innolux panel

Resolution: 1024xRGBx600

Brightness :550 cd/m2

4 AHD video inputs( AHD1/AHD2/AHD3/AHD4) 6 AHD video inputs optional

Each channel has trigger wire.AHD2 has priority

Video input format: D1/720P/1080P HD25/30fps PAL/NTSC

Compatible with AHD/CVBS camera

AHD1 with audio (Default)

4 channel with audio (Optional)

All buttons with backlights.

Built-in speaker optional

Each channel has audio function, audio can be selected by setting

Each channel has bule screen, bule screen can be selected by setting

Power supply: DC 9-32V

Detachable sunshade

Metal U type bracket default,bracket is optional

Dimension: 25.5 x 16.7 x 3.0cm( without shade)

27.5 x 18.4 x 7.8cm (with shade)"
