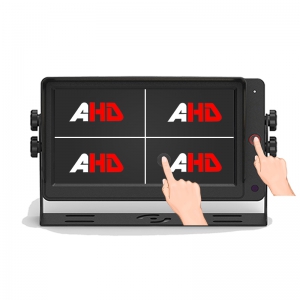

Name：7 inch Quad View AHD Vehicle Monitor Touch Screen with 4 Video Inputs

Model：CL-S712AHD-QT

Brief：

* 7 inch digital panel, 16 : 9 image ratio, 1024xRGBx600 resolution

* 4 AHD inputs and 4 trigger wires, trigger priority: AHD2>AHD1>AHD3>AHD4

* Compatible with CVBS/720P/1080P camera, PAL/NTSC system auto switch

* With capacitive touch screen function

Description Parameters

Product Parameter:

7’’ capacitive touch screen

4 AHD video input( AHD1/AHD2/AHD3/AHD4)

Each channel has trigger wire.AHD2 has priority

Video input format: 720P/1080P HD25/30fps PAL/NTSC

Multiple screen modes switch

Each channel has Audio function, audio can be selected by setting

Each channel has bule screen, bule screen can be selected by setting

Auto automatic dimming

All functions can be touched

Mirror flip, each channel

ACC Delay, each channel

New digital Innolux TFT panel

Resolution: 1024xRGBx600

Power supply: DC 9~32 V

Multi-function OSD setting

Supply removable sun visor, bracket is optional

Dimension: 19.4 x 11.5 x 2.65cm( without shade)

19.4 x 11.5 x 6.65cm (with shade)
