Name：7 inch Quad View AHD Vehicle Monitor with 4 Video Inputs

Model：CL-S702AHD-Q

Brief：

* 7 inch digital panel, 16 : 9 image ratio, 1024xRGBx600 resolution

* 4 AHD inputs and 4 trigger wires, trigger priority: AHD2>AHD1>AHD3>AHD4

* Compatible with CVBS/720P/1080P camera, PAL/NTSC system auto switch

* Each channel with Audio, audio can be selected by setting (Optional Function)

Description Parameters

7 inch Quad View AHD Monitor with 5 Touch Buttons

Product Parameter:

4 AHD video input( AHD1/AHD2/AHD3/AHD4)

Each channel has trigger wire.AHD2 has priority

Video input format: 720P/1080P HD25/30fps PAL/NTSC

Compatible with AHD/CVBS camera

Multiple screen modes switch

Each channel has Audio function, audio can be selected by setting

All buttons with background lights.

New digital Innolux TFT panel

Resolution: 1024xRGBx600

Power supply: DC 9~32 V

Metal housing design.anti-corrosion.anti-rust

Supply removable sun visor, bracket is optional

* Dimension: 17.8x12x2.3cmcm( without shade)

17.8x12x6.35cm (with shade)

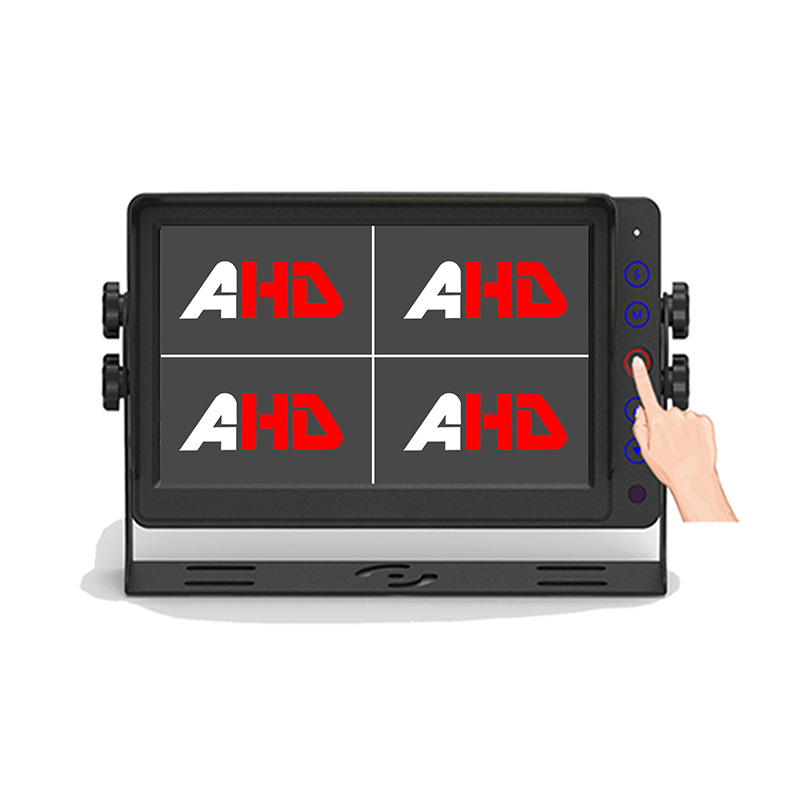

Product Image:
