Name：9 inch Quad View AHD Vehicle Monitor with 4 Video Inputsfor Truck / Bus / Van

Model：CL-S960AHD-Q

Brief：

* 9 inch digital panel, 16 : 9 image ratio, 1024xRGBx600 resolution

* 4 AHD inputs and 4 trigger wires, trigger priority: AHD2>AHD1>AHD3>AHD4

* Compatible with CVBS/720P/1080P camera, PAL/NTSC system auto switch

* Each channel with Audio, audio can be selected by setting (Optional Function)

Description Parameters

9 inch Quad View AHD Monitor for Truck / Bus / Van

Product Parameter:

4 AHD video input( AHD1/AHD2/AHD3/AHD4)

Auto switchable AHD2 when trigger reverse cable

Video input format: 720P/1080P HD25/30fps PAL/NTSC

Trigger priority :AHD2

One channel with Audio (Default)

4 channel with Audio (Optional)

All buttons with background lights.

New digital Innolux panel

Resolution: 1024xRGBx600

Power supply:DC9V-32V

Supply removable sun visor, bracket is optional

Dimension:23 x 15.2 x 3.0cm( without shade)

25 x 16.8 x 7.8cm (with shade)

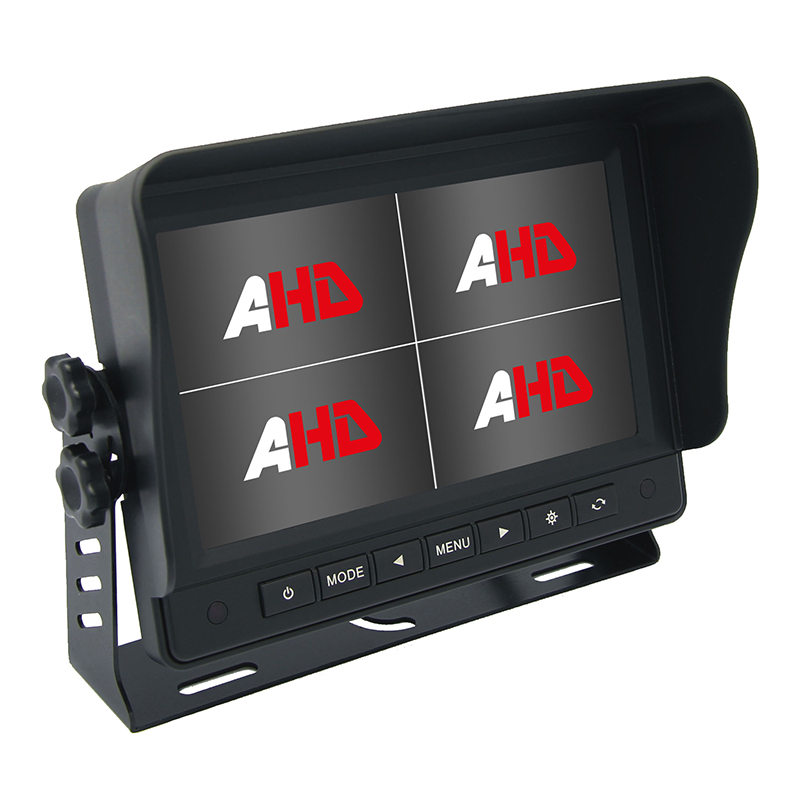

Product Image:
