7 inch IPS AHD Monitor With 2CH AHD Signal Input
Features:
7’’ HD IPS panel,16 : 9 image
resolution : 1024 x RGB x 600
brightness :450 cd/m2
Contrast : 500 : 1
Video input format: D1/720P/1080P HD25/30fps PAL/NTSC
2 AV input with 4P aviation connector
With two trigger wires .AV2 has priority
View angle: L/R:90,UP:90,down:90 degree. Full angle of view
Languages OSD(English/French/Deutsch/Dutch),default English
AV1/AV2 trigger delay setting 1-10sec.default 3sec.
AV1/AV2 mirror setting/ guide line ON/OFF
AV1/AV2 output shutter ON/OFF. default OFF
Auto dimmer function optional(CDS)
Compatible with AHD/CVBS camera
Built-in speaker option
Operation voltage : DC 9~32 V
Fan feet bracket optional
Remote control optional
Dimension:17.4 x 11.5 x 2.2cm
Operation temperature: -30~80℃
Storage temperature:-20~80℃

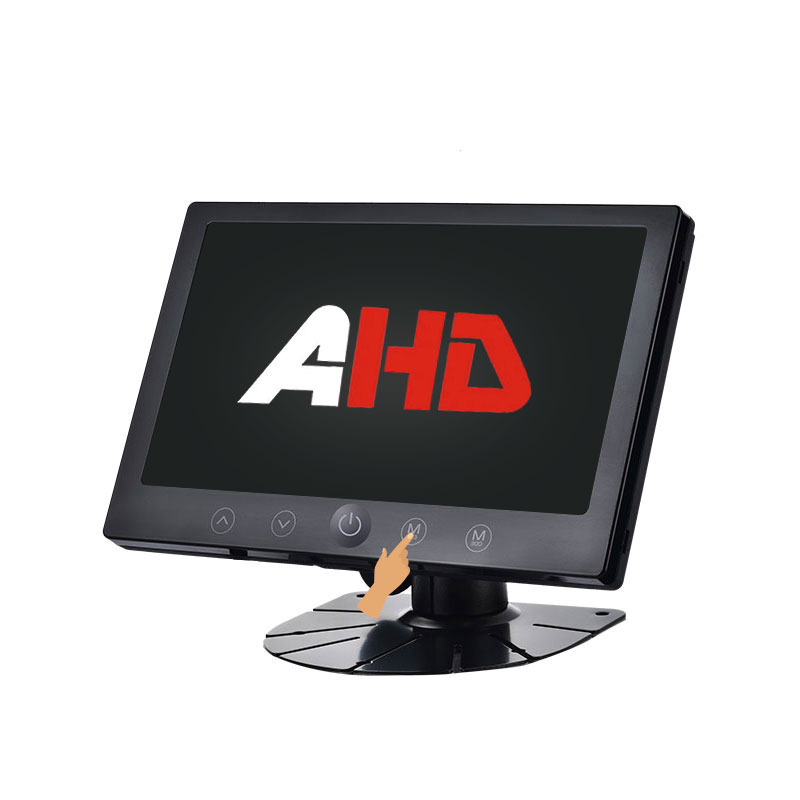

Product Images:
