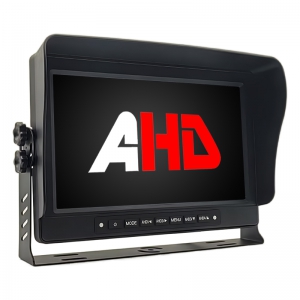

Name：10.1 Inch Waterproof AHD Vehicle Monitor with 2 Video Inputs

Model：CL-S1018AHD

Brief：
* 10.1 inch AHD monitor with 2 AHD video inputs and 2 trigger wires, trigger priority: AHD2
* Compatable with CVBS/AHD720P/AHD1080P camera, Suitable for PAL/NTSC system
* Aluminium alloy housing, IP69K Waterproof level
* Auto dimming function and Built-in speaker optional

Description Parameters

Specification:

10.1 inch digital Innolux panel

Metal housing design.anti-corrosion.anti-rust

Resolution:1024x600

Aluminium alloy housing with bulge buttons

2 AHD video input(AHD1/AHD2).3AHD input optional

1 Trigger wire for AHD2, auto switchable AHD2 when trigger reverse cable

Video input format: D1/720P/1080P HD25/30fps PAL/NTSC

Brightness：550 cd/m2

Compatible with AHD/CVBS camera

All buttons with backlights.

Built-in speaker optional

Power supply: DC 9~32 V

Supply removable sun visor

Standard"U" bracket. Fan feet bracket is optional

Waterproof level: IP69K

Dimension: 26.3 x 18.5 x 3.3cm ( without shade)

26.3 x 18.5 x 7.8cm (with shade)
