Name：7 inch Waterproof AHD Vehicle Monitor With 2AV Inputs

Model：CL-S768AHD

Brief：
* 7 inch AHD monitor with 2 AHD video inputs and 2 trigger wires, trigger priority: AHD2
* Compatable with CVBS/AHD720P/AHD1080P camera, Suitable for PAL/NTSC system
* Aluminium alloy housing, IP69K Waterproof level
* Auto dimming function and Built-in speaker optional

Description Parameters

7inch Waterproof Vehicle AHD Monitor With Touch Button

Product Parameter:
2 AHD video input( AHD1/AHD2)
Auto switchable AHD2 when trigger reverse cable
Video input format: 720P/960P/1080P HD25/30fps PAL/NTSC
Trigger priority:AHD2
Built-in speaker(optional)
All touch buttons with background lights and buzzer
New digital Innolux panel
Brightness: 400cd/m2
Resolution: 1024xRGBx600
Power supply:12-24(V)
Waterproof:IP69K
Supply removable sun visor,bracket is optional
Aluminium alloy housing with touch buttons
Dimension:19.5 x 12.8 x 3cm( without shade)
21.5 x 16 x 7.5cm (with shade)

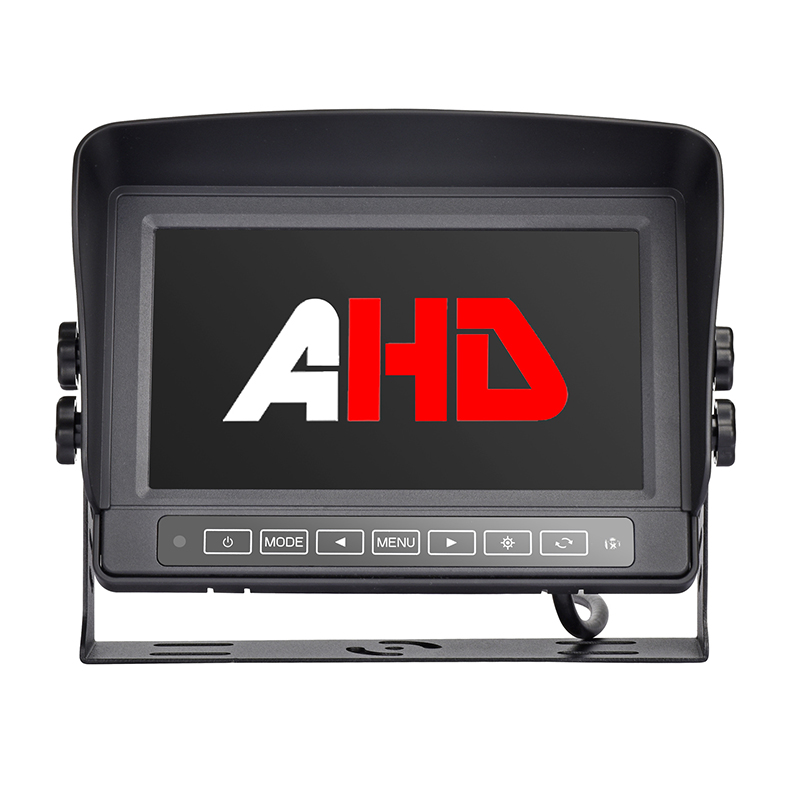

Product Image:
