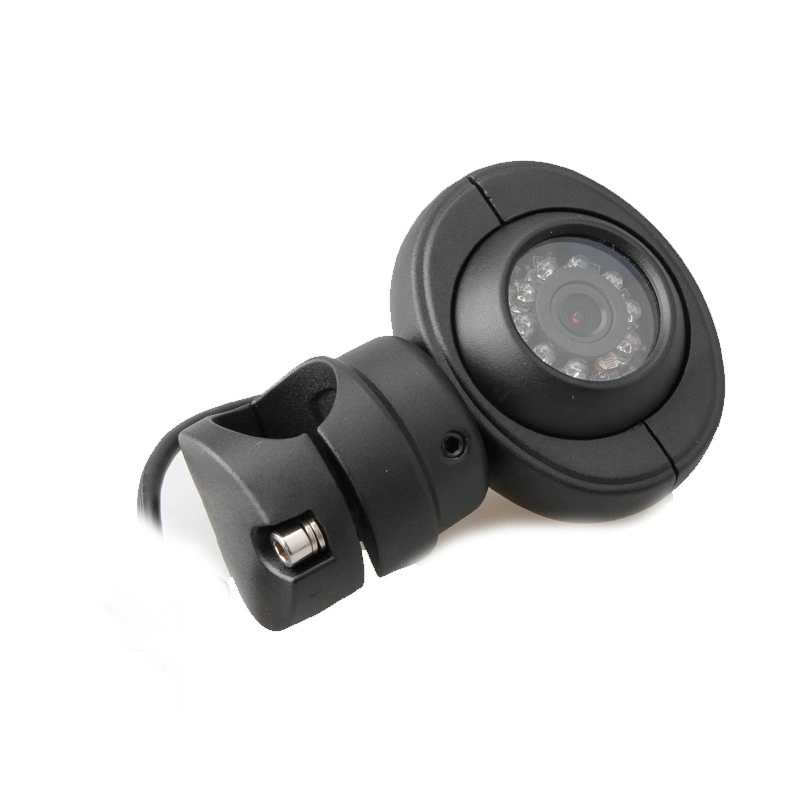

Name：12 IR LED Heavy Duty Side Mirror Camera 120° View Angle

Model：CL-804

Category：AHD Cameras

Brief：

* Resolution: CVBS / AHD 720P / AHD 1080P (Optional)

* Installation: Side Wind Mirror, Viewing Angle: 120°
* With 12 IR LED Light, features with Infrared Night Vision
* IP69K Waterproof Level. Suitable for rainy and sea working enviornment

Description Parameters

12 IR LED Heavy Duty Side Mirror Camera 120° View Angle

Product Parameter:

Images Sensors:1/2.7″&1/3″

Power supply:DC 12V ±10%

Power:<1W

Resolution(TV Lines):600Lines

Effective Pixels:720*576/720*480

Electronic Shutter:1/60(NTSC)/1/50(PAL)-1/10,000

Lux:0.01 LUX (12 LED)

Lens:2.1mm

S/N ratio:≥48dB

System:PAL/NTSC

View Angle:120°

Video Output:1.0vp-p,750hm

Ip Rating:IP67-IP68

Operating Temperature(Deg. C):-20~+75(RH95% Max.)

Storage Temperature(Deg. C):-30~+85(RH95% Max.)
