Name：AHD 1080P Dual Lens Car Reversing Camera

Model：CL-820

Category：AHD Cameras

Brief：

* Resolution: CMOS / AHD 1080P (Optional)

* Dual Lens Design, each lens features with 12 IR lED Light

* Viewing Angle: 95°& 75°

* IP68 Waterproof Leve, suitable for rainy working environment

Description Parameters

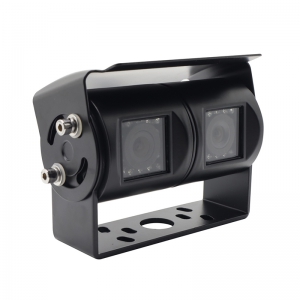

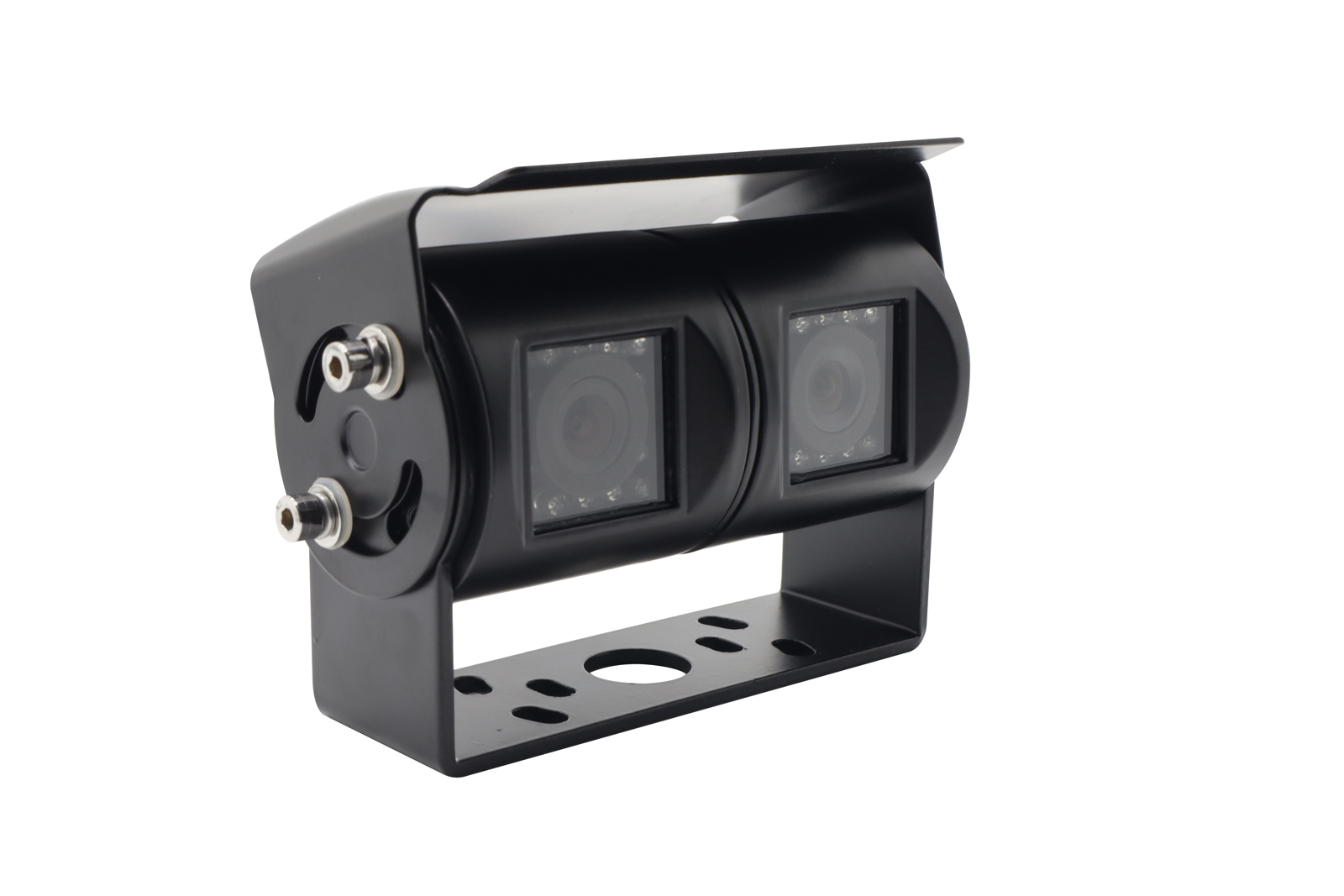

CL-820 Dual Lens Car Camera

This Carleader’s CL-820 an dual lens car camera can provide two 1080P Video inputs, supporting PAL/NTSC TV system. With IP68 waterproof, CL-820 could working well in humid environment. Allow of no doubt, CL-820 will be your first choice in car camera.

Carleader CL-820 Introduction

* We have sold CL-820 for a lot year, which is a stable and mature item. Hot selling on Australia, America and British, etc.
* One lens is 2.8mm and another lens is 3.6mm with large hole. On this case, CL-820 could fit in your car very well.
* CL-820 is an excellent quality dual lens high resolution car camera produced by Carleader which have more than 10-year experience in In-car CCTV items.
* CL-820 well know for its find quality seem Carleader always take item’s quality as first priority. We are a worth trusting manufacture and supplier in Car Monitor/Car Camera.

Parameter of CL-820 Dual Lens Reversing Camera

Items Name	Dual lens reversing Camera
Images Sensors	1/3″CCD &1/4″CMOS
Power supply	DC 12V ±1
Resolution (TV Lines)	600&700
Mirror	Mirror image & non-mirrored image optional
Electronic Shutter	1/60(NTSC)/1/50(PAL)-1/10,000
Lux	0.01 LUX (12 LED*2)
Lens	2.8mm
Lens diameter	One lens 2.8mm, one lens 3.6mm with large hole.
S/N ratio	≥48dB
System	PAL/NTSC optional
View Angle	120°
Video Output	1.0vp-p,75 ohm
Ip Rating	IP67-IP68
Operating Temperature (Deg. C)	-20~+75(RH95% Max.)
Outside shell	Black(default), White (Optional)
Storage Temperature (Deg. C)	-30~+85(RH95% Max.)
