Wide Angle Car Camera for Front / Rear View-CARLEADER-AHD Monito，Quad AHD Monito，Standard Monito，Quad View Monito

Product categories

You are here: Home >> Products >> AHD Cameras

Name：Wide Angle Car Camera for Front / Rear View

Model：CL-923

Brief：

* Resolution: CVBS / AHD 720P / AHD 1080P (Optional)

* Wide Viewing Angle: 130°~180°, Lens: 2.8mm

* IP69K Waterproof Level, suitable for rainy and sea working enviornment
* With infrared night vision function

Description Parameters

Wide Angle Car Camera for Front / Rear View

Product Parameter:
Images Sensors:1/3″CMOS. AHD 720P AHD 1080P

Power supply:DC 12V ±1

Mirror image & non-mirrored image optional

Lux:0.01 LUX

Lens:2.8mm

Resolution(TV Lines):700/720P/1080P

IR cut Day and night switch optional

System:PAL/NTSC optional

Video Output:1.0vp-p,75 ohm

S/N ratio:≥48dB

View Angle:130°-180°

Ip Rating:IP69

Operating Temperature(Deg. C):-20~+75(RH95% Max.)

Storage Temperature(Deg. C):-30~+85(RH95% Max.)

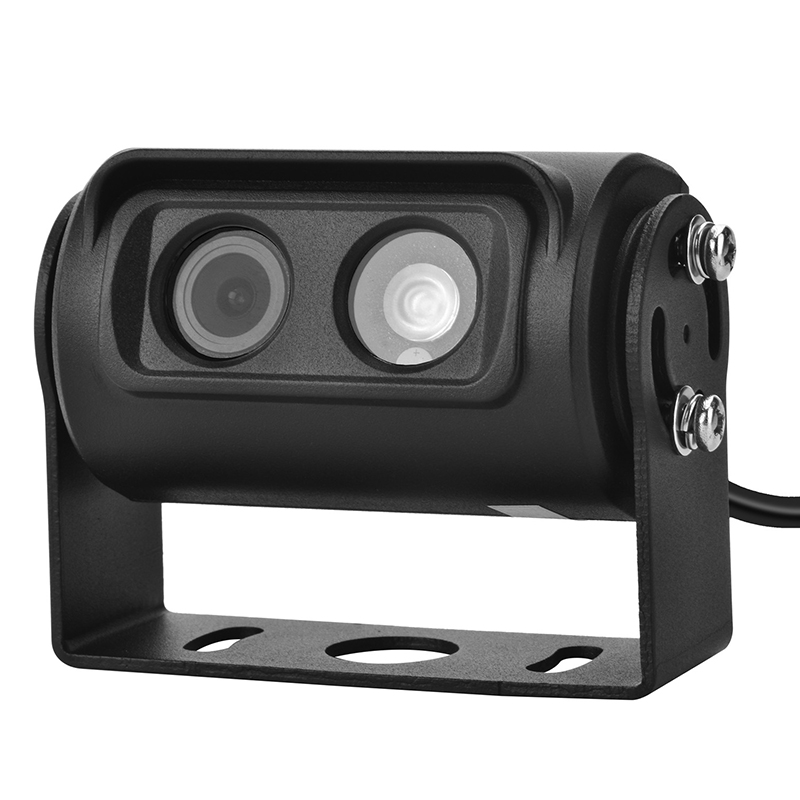

Product Image:
