Name：MINI Corner and Side Camera

Model：CL-908

Brief：

* Resolution: CVBS / AHD 720P (Optional), System: PAL/NTSC (Optional)

* Viewing Angle: 130°, Lens:2.8mm

* Mirror image & non-mirrored image optional
* IP69K Waterproof Level, suitable for rainy enviornment

Description Parameters

MINI Corner and Side Camera

Product Parameter:

Images Sensors:1/4″

Power supply:DC 12V ±10%

Video input format:720P HD 25/30Fps PAL/NTSC

Mirror image & non-mirrored image optional

Lux:0.5 LUX

Lens:2.80mm

Effective Pixels:668x576

S/N ratio:≥48dB

Dimension:32mm(L)*42mm(W)*30mm(H)

System:PAL/NTSC optional

View Angle:130°

Ip Rating:IP69

Operating Temperature(Deg. C):-20~+75(RH95% Max.)

Storage Temperature(Deg. C):-30~+85(RH95% Max.)

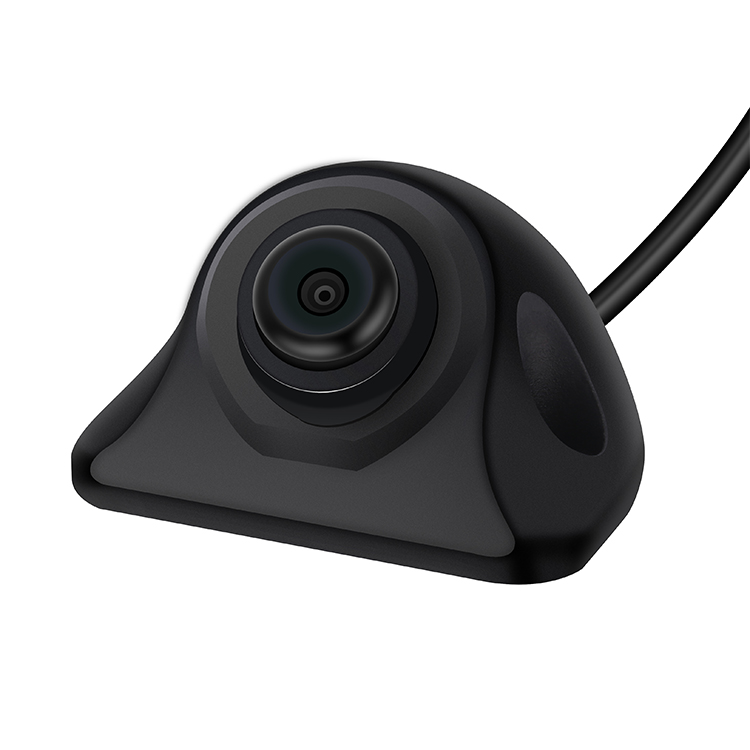

Product Image:
