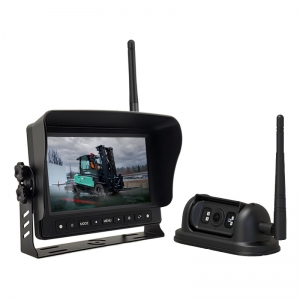

Carleader 7-Inch 2.4G Digital Wireless Waterproof Monitoring System combining a 7-inch digital display and new camera with advanced 2.4G wireless technology, this system delivers seamless video transmission and robust functionality for industrial, commercial, or outdoor applications.
Key Features
7-Inch High-Resolution Display: Enjoy crisp 16:9 imaging with a resolution of 1024×RGB×600 and 450 cd/m² brightness, ensuring clarity even in bright conditions.
Long-Range Wireless Connectivity: Built-in 2.4G transmitter (camera) and receiver (monitor) enable stable video transmission up to 80–120 meters.
Expandable Inputs: Default 1 wireless video input, with optional expansion to 2/3/4 720P camera inputs for Single / Dual / Quad display monitoring.
Auto-Pairing Technology: Hassle-free setup with automatic camera-to-monitor pairing.
Specification:
Monitor:
7 inch digital panel, 16:9 image ratio
Resolution: 1024xRGBx600
Screen Type: 16:9
Backlight: LED, 400cd/m2
Contrast: 500:1
Remote control
Menu language: English, Russian, Korean, Portuguese, Spanish, Italian, Dutch, Finnish, German, French, Chinese.
AV input:1CH 2.4G wireless video signal input(default)
2/3/4CH wireless video inputs optional, support split display
Wireless distance about 80-120m
2.4G frequency point: 2400 ~ 2483.5MHz
Receiving Sensitivity: -85dBm
Power supply:DC12-24V
Power consumption:<6W
Waterproof metal case design
Waterproof:IP69K
Shockproof level:4G
detachable sunshade
Metal U type bracket
dimension:18.5 x 12.8 x 3.0cm( without shade)
20.4 x 14.1 x 7.8cm (with shade)
Camera:
Images Sensors:1/2.7″&1/3″
Built-in 2.4G wireless transmitter in camera
PAL/NTSC automatic switch
Camera Angle: 120°
18 IR LED, Support IR Night Vision.
Pairing: Auto
waterproof: IP69K
Video output: AHD 720P
Infrared (IR) LED. Effective range: 20m
Material: zinc alloy
Signal to noise ratio: 69dB
Working power supply: DC12V-24V
Working temperature: -20 ° C ~ +70 ° C
SD Card recording function( Optional )
Application: Truck/Trailer/Bus/RV/Pickups/Trailer/Forklifts
