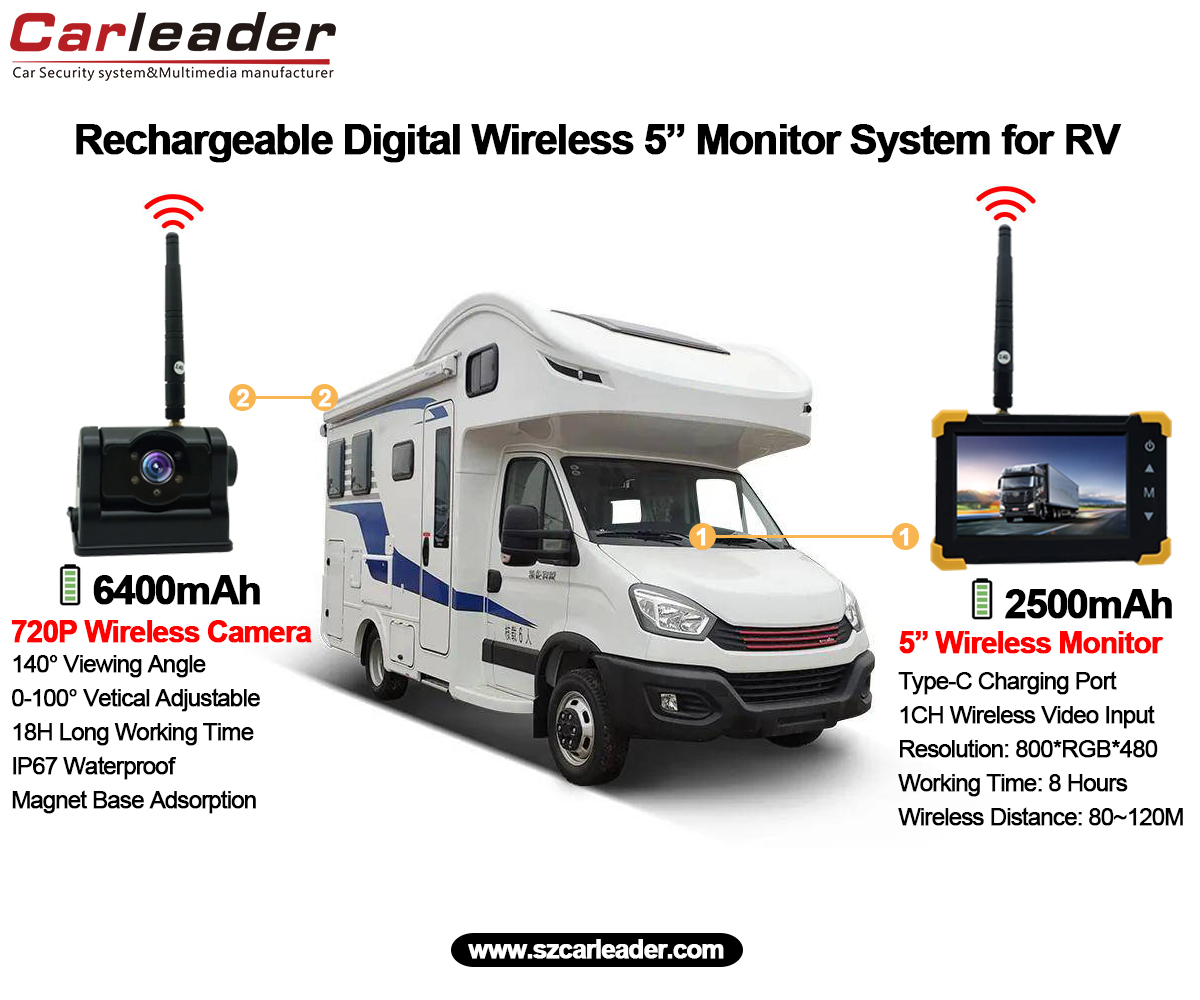

Rechargeable Digital Wireless 5 inch Monitor and Camera System for RV
Product Parameter:
5″ 2.4G Digital Wireless Monitor
Model：CL-580MWHD
Screen ratio: 16:9 IPS
Screen resolution: 800*R.G.B*480
Backlight: LED
Brightness: 500cd/m2
Viewing angle: UP—85°, DOWN—85°, LEFT—85°,RIGHT—85°
Working temperature : -20~+70 ºC 85%RH MAX
Storage temperature: -30~+80 ºC 95%RH MAX
Power supply: Type-C connector, 5V
Delay time: 120mS
Working Time: 8H for continuous working
Charging time: 1A/3.5H
Battery Capacity: 2500mA
Wireless video: 1 channel HD wireless video input
Frequency: 2400 ~ 2483.5MHz
Decompression mode: H.264
Receive sensitivity: -89dBm@4MHZ
Spread spectrum mode: FHSS(Adaptive frequency hopping)
Transmission Distance: 150M in open area
Shockproof Level: 4G
Material: PC,Plastic injection molding
Power cable: Tpyec USB Charging Cable
Weight: 0.54KGS
Dimension: 148mm*94mm*20mm

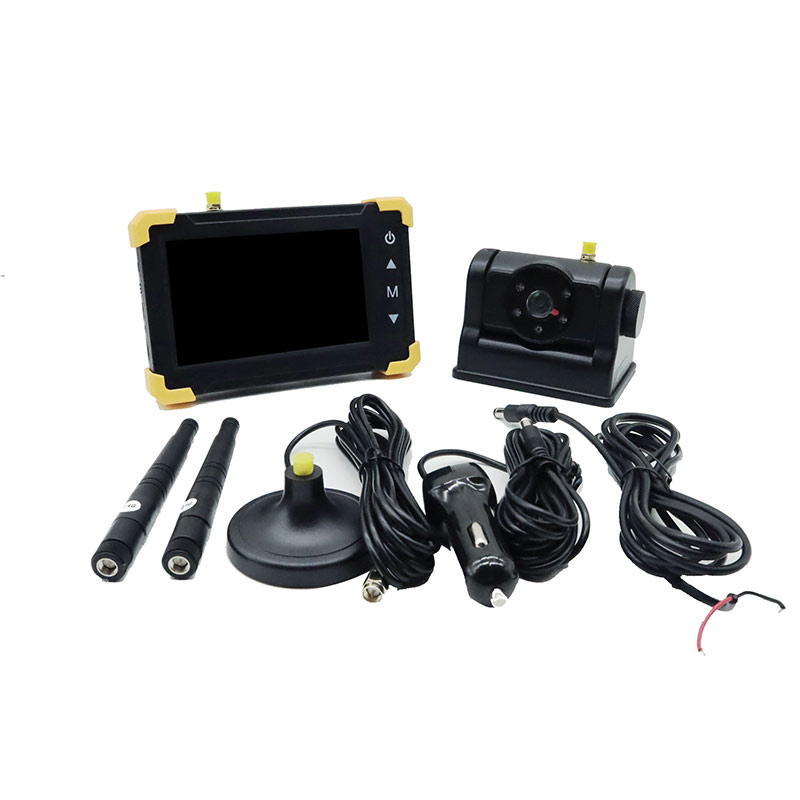

Attachment: USB Charging Cable, Suction Mount or 566 fan shaped bracket or 568 butterfly shaped bracket, User Manual, 2.4G 5DB Antenna, 35M antenna extension cable, Car Charging Cable
Features:
Parking Guide Line Range Adjustable
Mirror Flip function
Long Press power button to power on/off
Wireless Camera (built-in battery)
Model：CL-111D
Resolution: 720P 1280*720px
Image Sensor: CMOS 1/2.7"
Viewing Angle: 140°
Transmission Distance: 150M in open area
System: N/P Automatically
Spread Spectrum: FHSS(Adaptive frequency hopping)
Transmission Bandwidth: 8MHz BER<1E-3
Battery Capacity: 6400mA
Battery indicator: Support, 4PCS LED lights
Battery Charging Time: DC5.5,12~24V/6H
Working Time: 18H(under continuous working conditions)
Fully charaged standby time: Zero power consumption at standby situation
Camera Adjustable Angle: 0-100 degree
Frequency: 2400-2483.5MHZ
ON/OFF Mode: Long press to ON/OFF, short press to show battery status
Installation Mode: Magnet base adsorption installation
Night Vision: HD-infrated night vision
SNR: 46.5dB
Audio: Without (Optional)
Waterproof level: IP67
Transmitting sensitivity: -89 dBm
Material: Black aluminium alloy
Shockproof Level: 4G
Power supply: DC12-24V
Operation Temperature: –20℃ ~ 70℃, RH95%MAX
Storage Temperature: –30℃ ~ 80℃, RH95%MAX
Dimensions: 74*45.5*56.5mm
Accessories: 5.5DC male power cable, 5DB antenna, Power adapter( EU, UK or US optional)

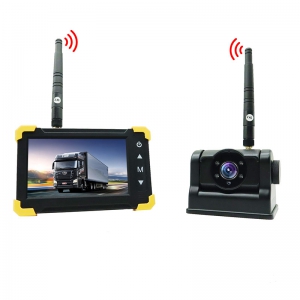

Product Image:
