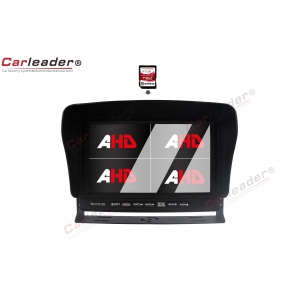

Name:9 inch 4CH Quad View AHD Vehicle Monitor with DVR Function
Model:CL-S960AHDQ-SDDVR
Category:DVR Monitors
Brief:
* 9 inch digital panel, 16 : 9 image ratio, 1024xRGBx600 resolution
* 4 AHD inputs and 4 trigger wires, trigger priority: AHD2>AHD1>AHD3>AHD4
* Support DVR recording function, SD Card Storage, up to 256G
* Auto dimming function and Built-in speaker optional
Description Parameters
Product Parameter:

9 " high digital new HD panel,16 : 9 image
Video input format: D1/720P/1080P HD25/30fps PAL/NTSC
Resolution :1024 x RGB x 600
4 AHD video input( AHD1/AHD2/AHD3/AHD4)
Each channel has trigger wire.AHD2 has priority
Multiple screen modes switch
Auto dimming function
With SD card recording function
AHD1 has audio function(default)
Each channel has Audio function, can be selected by setting (optional)
Each channel has bule screen, bule screen can be selected by setting
Brightness :500 cd/m2
Contrast : 500 : 1
View Angle:L/R:70,UP:50,down:70 degree
8 languages OSD,remote control
Power Supply : DC 9~32 V
Detachable sunshade
Metal U type bracket(stand bracket optional)
Dimension:22.8 x 15.6 x 3.3cm( without shade)
                    24.5 x 16.4x 7.8cm (with shade)
