Description:

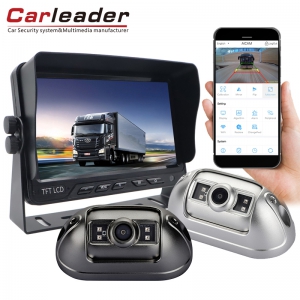

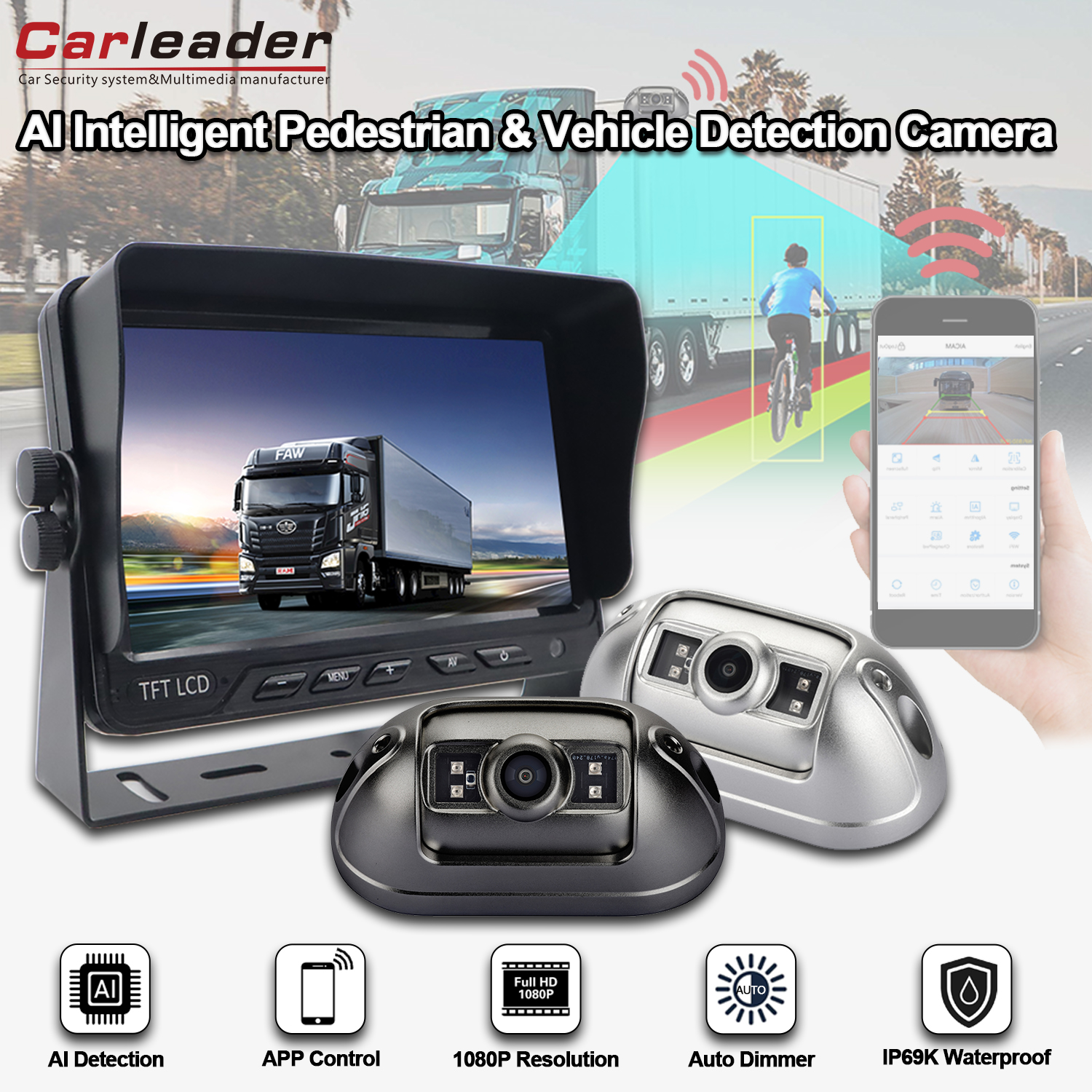

Carleader newly launched HD 1080P Intelligent Pedestrian Detection Camera, which can be controlled through the mobile browser to operate in the background,
The AI-powered camera is an advanced type of in-vehicle smart camera that uses artificial intelligence (AI) technology to enhance its functionality.
Support calculation Auxiliary line style and switching auxiliary line, adjusting the auxiliary line nodes and can be set to control the scope of the alarm.
Enter the background through wifi connection and set parameters according to the installation location and usage needs of the AI car security camera.
Welcome to contact us for more details.
AI Camera parameters:
| Images Sensor |
1/2.9 "CMOS |
| Effective Pixels |
1920 (h) x 1080 (v) |
| Resolution |
1080P HD 25/30Fps |
| Synchronous system |
Auto |
| Video output |
1.0vp-P, 75ohm |
| Horizontal angle |
150 ° |
| Booting time |
7s |
| Waterproof level |
IP69K |
| Electronic shutter |
1/25 ～ 1/50,000 Seconds |
| Image mode |
Normal/Mirror/Flip |
| White balance |
Auto |
| Dynamic Response |
81DB |
| Minimum Illumination |
□ 0.1 Lux/F1.2 □ 0lux LED On |
| Operating temperature |
–20 ℃ ~ 70 ℃, RH95%MAX |
| Storage temperature |
| –40 ℃ ~ 80 ℃, RH95%MAX |
7 inch AI smart detection monitor camera system Parameters：
| Model |
CL-S713AHD |
| Interface |
5 Pin Aviation Port |
| Video input format |
720P/1080P HD25/30fps PAL/NTSC |
| Resolution |
1024xRGBx600 |
| Buttons |
with backlight effect |
| Video input |
2AV with 2trigger wire（3AV with 3 trigger wire optional) |
| Trigger priority |
AV2 |
| Power supply |
DC9V-32V |
| Dimension |
17.8x12x2.7cm
|
|
|
