Parameters

Performance indicators

CPU

NT98336

Operating System

Embedded Linux operating system

Language

Chinese / English

UI

Graphical menu operation interface, supporting mouse operation

Password Safety

Two-level management of user password and administrator password

Video System

PAL/NTSC

Video compression

H.265/H.264

 Video Resolution

1080P/720P/960H/D1/CIF

Playback Resolution

1080P/720P/960H/D1/CIF

Combination

16 AV Input / 12 AV inputs + 4 IPC input

Recording Quality

Grade 1 to 6

Graphic Display

Support 1、2、3、4、8、12、16 view display

Audio Formats

G.711A、G.711U、G.726

Audio Bit Rate

8KB/s

Recording Method

Simultaneous recording of sound and video

Recording Way

Auto / Alarm

Data Storage

Hard Disk + SD Card

Video Query

Search by channel, video type and alarm type

Video Playback

Local 16CH

Upgrade mode

Manual upgrade, automatic upgrade, remote upgrade

Upgrade way

USB , SD card, network

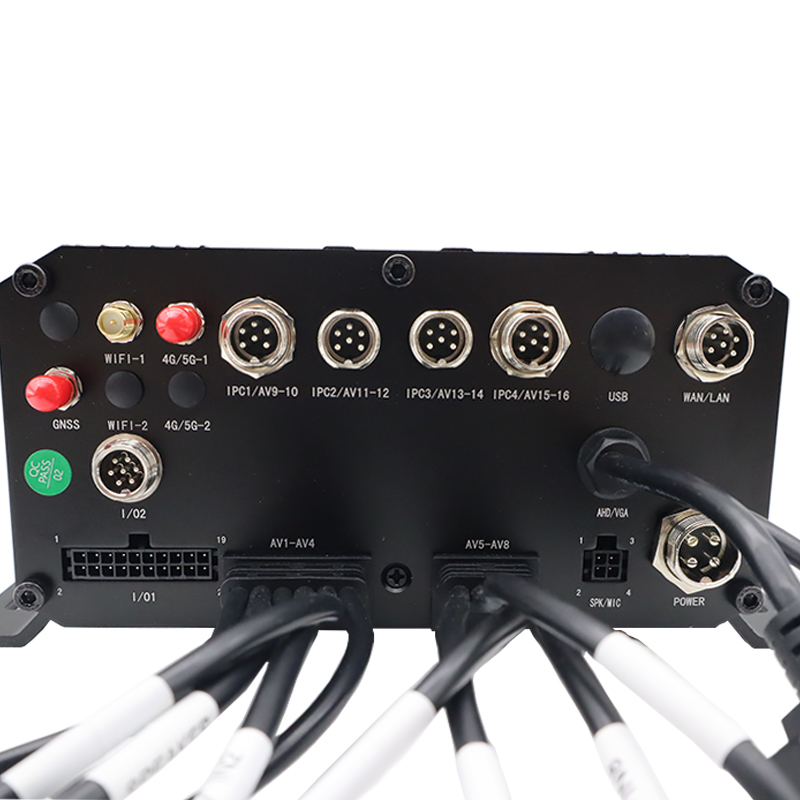

Audio/Video Input

16CH M12 aviation connector

Audio/Video output

VGA/CVBS/AHD

Alarm input

9 digital input

Alarm output

4 outputs

Speaker Interface

1CH SPK

Mic

Independent intercom channel

Hard Disk Interface

(Dual or Single Optional)

Dual 2.5 inch hard disk (7mm)

Single 2.5 inch hard disk (15mm)

SD Card Interface

1 x SDXC high speed interface

Disaster recovery interface

1 x 5PIN aviation interface

USB Interface

1 x USB 3.0 interface

Serial Port

1 x LVTTL，1 x RS232，1 x RS485

CAN

2 x CAN

Ignition input

1 x ACC signal

LED Indicator

Power/operation status indicator light

HDD Lock

1

Debug serial port

1

GNSS Module

GPS/BD/GLONASS

Wireless

Support 4G Netcom

IPC

6Pin M-12 aviation connector

WIFI

2.4GHz/5GHz

Power Input

DC：9V~36V

Power Output

5V 300mA

Typical power consumption

Power consumption: AVG 9W (excluding peripherals)

Static power consumption: 12V@3mA

Operating Temperature

-20 --- 70℃

Storage capacity

1080P  0.726G/H/CH

720P  0.58G/H/CH

960H  0.37G/H/CH

Size(L*W*H）

186mm*199mm*90mm
