Name：7inch Waterproof Car Quad AHD Monitor With Touch Button

Model：CL-S768AHD-Q

Brief：

* 4 AHD video inputs and 4 trigger wires, trigger priority: AHD2>AHD1>AHD3>AHD4

* Compatable with CVBS/AHD720P/AHD1080P camera, suitable for PAL/NTSC system

* DC 9~32V wide voltage range, suitable for most of vehicle

* Full glue filling, IP69K Waterproof Level, suitable for rainy and sea working environment

Description Parameters

7inch Waterproof Car Quad AHD Monitor With Touch Button

Product Parameter:

4 AHD video input(AHD1/AHD2/AHD3/AHD4)

Each channel has trigger wire.AHD2 has priority

Video input format: 720P/1080P HD25/30fps PAL/NTSC

Compatible with AHD/CVBS camera

Multiple screen modes switch

Built-in speaker( waterproof speakers optional)

All buttons with background lights.

New digital Innolux TFT panel

Resolution: 1024xRGBx600

Power supply: DC 9~32 V

Metal housing design.anti-corrosion.anti-rust

Supply removable sun visor, bracket is optional

"Dimension:18.5 x 12.8 x 3.0cm( without shade)

20.4 x 14.1 x 7.8cm (with shade)

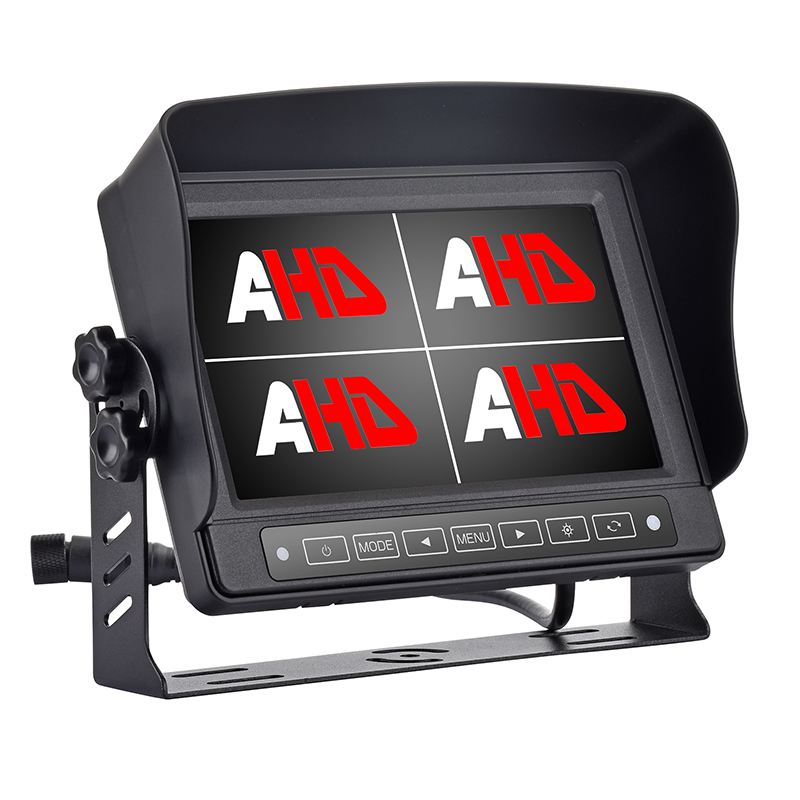

Product Image:
