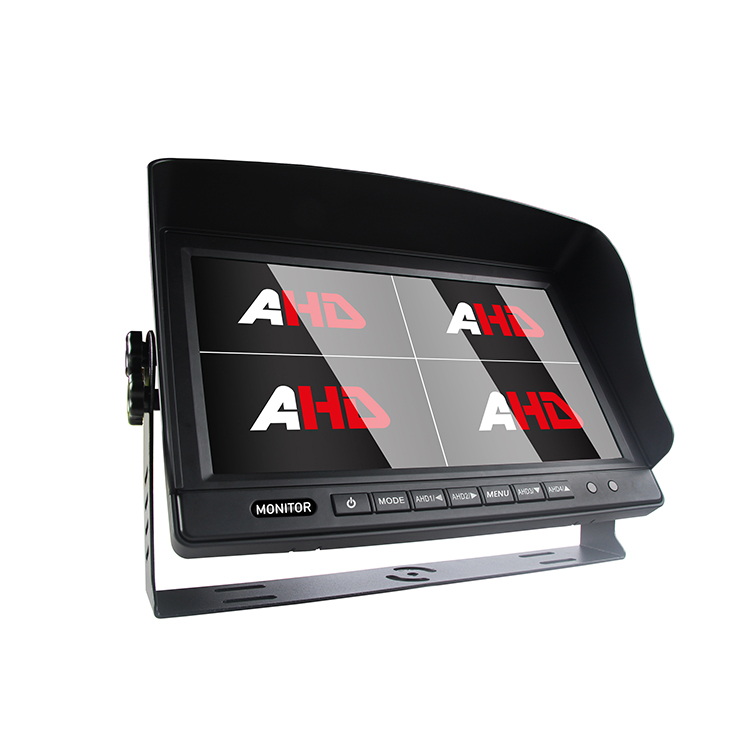

Name:10.1 inch Quad View AHD Monitor
* 4 AHD video inputs and 4 trigger wires, trigger priority: AHD2>AHD1>AHD3>AHD4
* Compatable with CVBS/AHD720P/AHD1080P camera, suitable for PAL/NTSC system
* One channel with Audio (Default) / 4 channel with Audio (Optional)
* With 7 click button on the bottom of the screen, all button with backlight effect
Description Parameters

10.1 inch Quad View AHD Monitor

Product Parameter:

4 AHD video input( AHD1/AHD2/AHD3/AHD4)

Auto switchable AHD2 when trigger reverse cable

Video input format: 720P/1080P  HD25/30fps PAL/NTSC

Trigger priority :AHD2

One channel with Audio (Default)

4 channel with Audio (Optional)

All buttons with background lights.

New digital panel


Power supply: DC 9V-32V

Supply removable sun visor, bracket is optional

Dimension: 25.5 x 16.7 x 3.0cm( without shade)

                   27.5 x 18.4 x 7.8cm (with shade)

Product Image:
