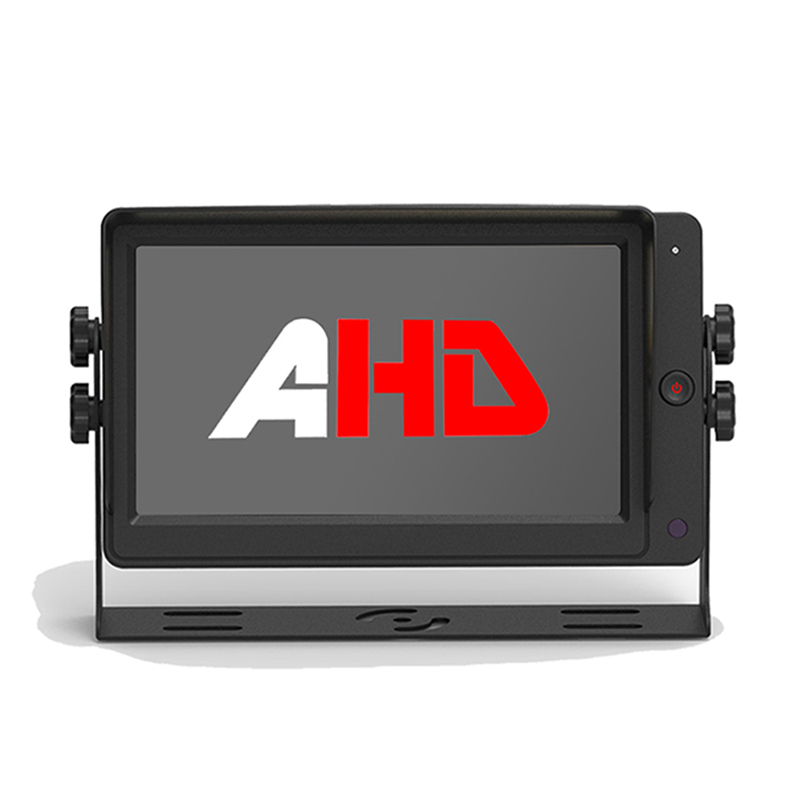

Name:7 Inch 2AV AHD Monitor with 1 Click Button
* 7 inch AHD monitor with 2 AHD video inputs and 2 trigger wires, trigger priority: AHD2
* Compatable with CVBS/AHD720P/AHD1080P camera, suitable for PAL/NTSC system
* DC 9~32V wide voltage range, suitable for most of vehicle
* With 1 click button on the side of the screen, features with backlight effect
Description Parameters
7 Inch 2AV AHD Monitor with 1 Click Button

Product Parameter:
2 AHD video input( AHD1/AHD2)
Auto switchable AHD2 when trigger reverse cable
Video input format: 720P/960P/1080P HD25/30fps PAL/NTSC
Trigger priority :AHD2
Built-in speaker(optional)
All buttons with background lights.
New digital Innolux panel
Resolution: 1024xRGBx600
Power supply: DC9V-32V
Supply removable sun visor, bracket is optional
* Dimension:17.8x12x2.3cmcm( without shade)
                      17.8x12x6.35cm (with shade)

Product Image:
