Name：New 7’’ Rearview AHD Monitor With 5 Click Button

Model：CL-S701AHD

Brief：

* [Two Video Input] 7 inch AHD monitor with two AHD video inputs and two trigger wires, trigger priority is AHD2 > AHD1

* [Wide Compatibility] Compatable with CVBS/AHD720P/AHD1080P camera, also compatable with PAL/NTSC system

* [Wide Voltage Design] DC 9~32V wide voltage range, suitable for most of vehicle

* [Click Button] With 5 touch button on the side of the screen, all button features with backlight effect

Description Parameters

New 7’’ Rearview AHD Monitor With 5 Click Button

Product Parameter:
* 7 " TFT digital new panel ，16 : 9 image

* Auto dimming function optional(CDS)

* Resolution :1024 x RGB x 600

* 2 video inputs with 2 trigger wire(default)

* 3video inputs with 3 trigger wires(optional)

*Video input format:CVBS&720P&960P&1080P HD 25/30fpsP/N

* Brightness : 500 cd/m2

* Contrast : 500 : 1

* View angle:L/R:70,UP:50,down:70 degree

* 5 languages OSD，remote control

* All buttons with light(blue) power button is red

* Built-in speaker (optional)

* Power supply : DC 9~32 V

* Detachable sunshade

* Metal U type bracket(default).fan feet bracket optional

* Dimension:19.4 x 11.5 x 2.65cm( without shade)

19.4 x 11.5 x 6.65cm (with shade)

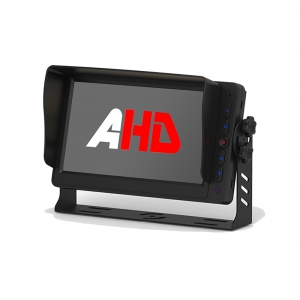

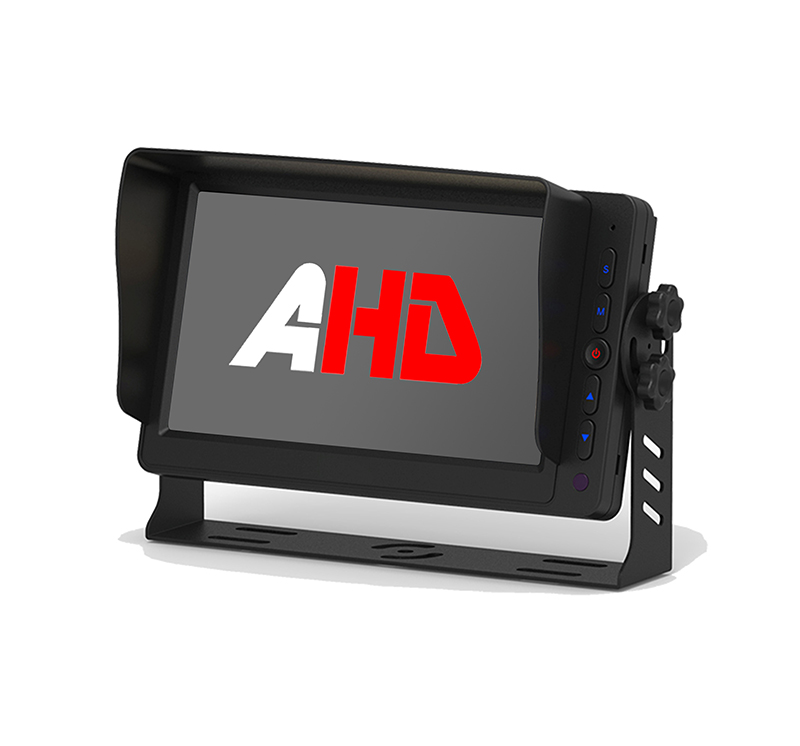

Product Image:
