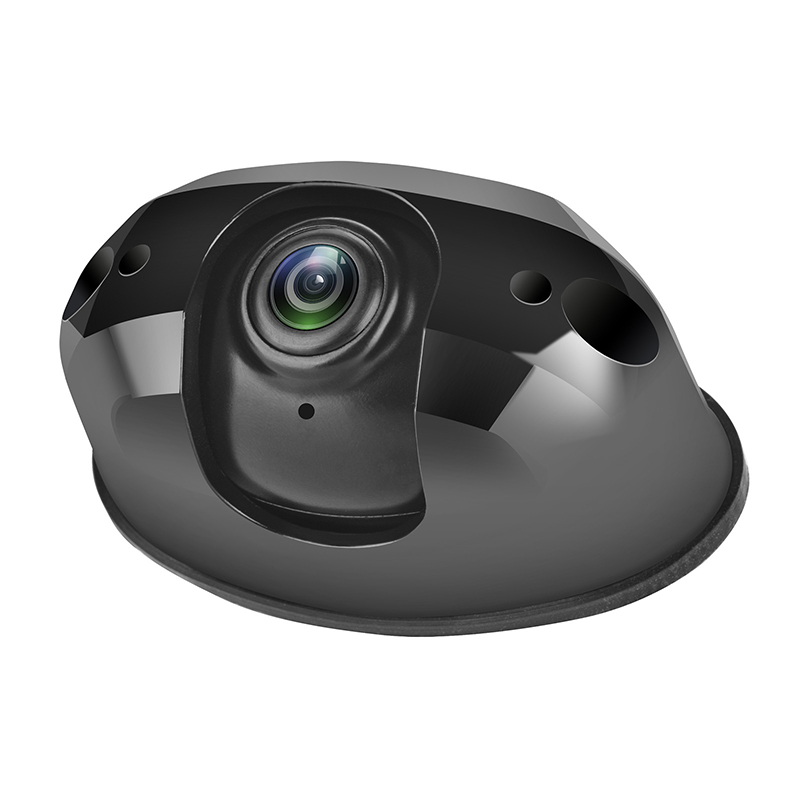

Name：Starlight Ultra Wide Angle Camera for Front / Rear / Side View

Model：CL-8089

Category：HD cameras series

Brief：

* Resolution: CVBS / AHD 720P / AHD 1080P (Optional)

* Wide Viewing Angle: 180° (Max.). Vertical 90° angle adjustable

* IP69K Waterproof Level, suitable for rainy and sea working enviornment
* Starlight Night Vision: have a better colored image in the dark enviornment

Description Parameters

Starlight Ultra Wide Angle Camera for Front / Rear / Side View

Product Parameter:

Images Sensors:1/2.7″&1/3″

Power supply:DC 12V ±10%

Resolution(TV Lines):D1 / 720P / 1080P

Mirror image & non-mirrored image optional

Electronic Shutter:1/65(NTSC)/1/60(PAL)-1/10,000

Lens:2.8mm

S/N ratio:≥50dB

System:PAL/NTSC optional

View Angle:180° (Max.)

Video Output:1.0vp-p,750hm

Ip Rating:IP69K

Operating Temperature(Deg. C):-20~+75(RH95% Max.)

Storage Temperature(Deg. C):-30~+85(RH95% Max.)
