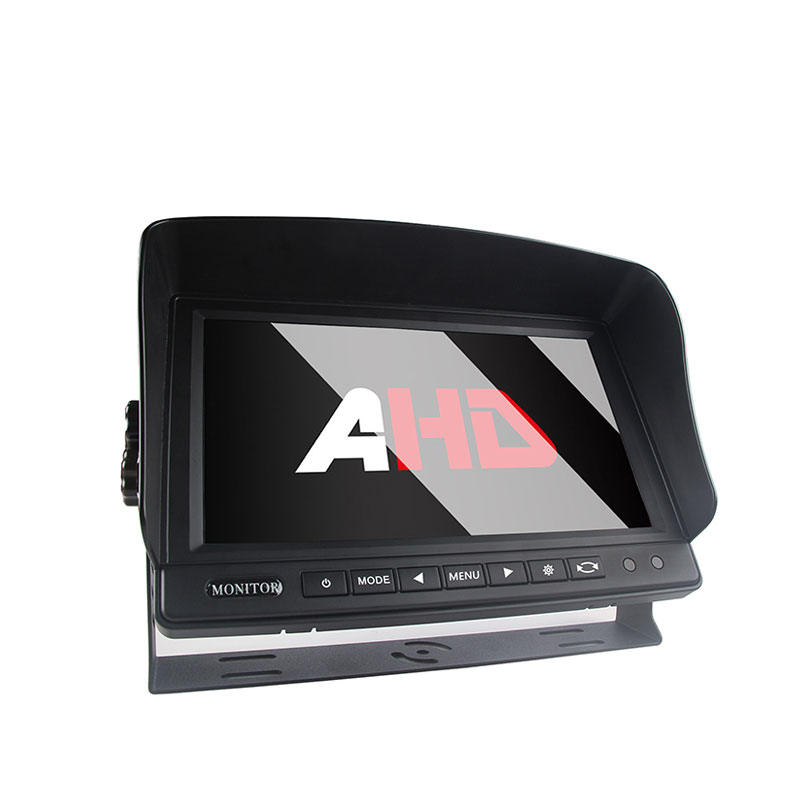

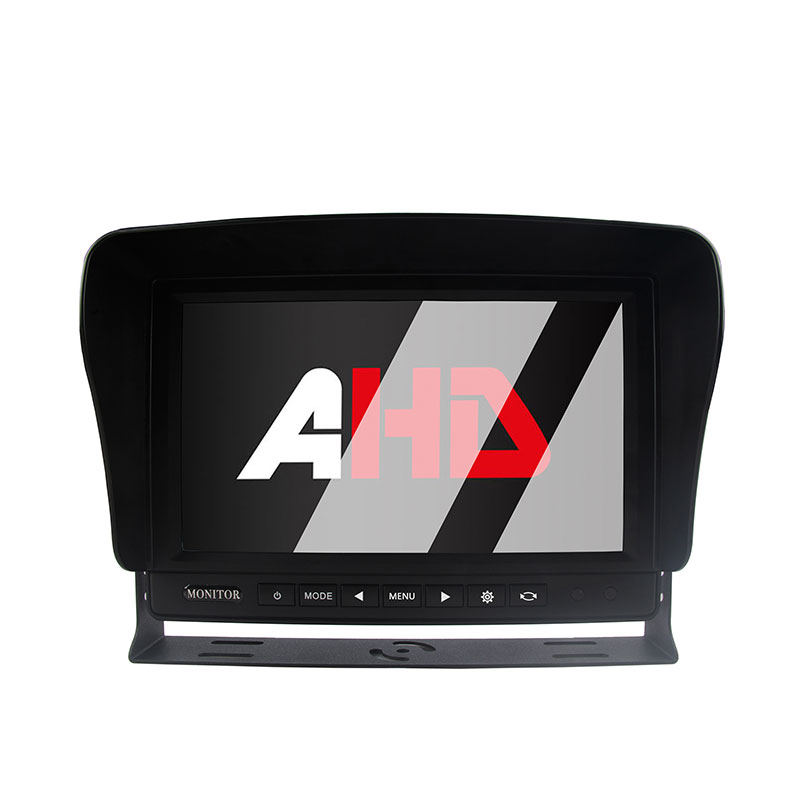

Carleader 9 Inch 4CH AHD Inputs Quad Display Heavy Duty Vehicle Monitor, a high-performance 9 inch quad AHD monitor designed for professional vehicle surveillance and monitoring applications. With its advanced display technology and multi-channel input capability, it provides a clear, stable, and reliable video monitoring solutions for various types of vehicle.

Key Features

Superior Display Quality

* 9 inch high quality digital panel for excellent visual performance, High resolution of 1024 x 600 (RGB) ensures clear and detailed image display

* Brightness level of 500 cd/m² for optimal visibility even in bright environments

Flexible Video Input

* 4CH AHD video input (AHD1/AHD2/AHD3/AHD4) for multi-camera monitoring, each channel equipped with trigger wire, AHD2 channel has trigger priority

* Compatible with CVBS / AHD 720P / AHD 1080P cameras for versatile application

Advanced Audio Capabilities

* Default audio solution: AHD1(or other channel, need to be decided before production) has audio function for basic audio monitoring needs

* Optional audio solution: Each channel has audio function in single display mode, when it’s in quad view mode, only one channel with audio function (which channel with audio can be selected in menu), in case multiple channels emitting sounds simultaneously to disturbing and confusing the driver

User-Friendly Design

* All operation buttons with background lights for easy operation in low-light conditions

* Auto dimming function (optional) for adaptive brightness adjustment

Robust Construction & Power

Wide voltage power supply: DC9V-32V for stable operation in various power environments

Compact dimensions: 22.8 x 15.6 x 3.3 cm (without sunshade), 24.5 x 16.4 x 7.8 cm (with sunshade) for space-saving installation

Applications

Carleader 9 Inch 4CH AHD Inputs Quad Display Heavy Duty Vehicle Monitor is ideal for Vehicle monitoring systems (trucks, buses, RV, trailer, tractor, agricultural vehicle, construction vehicle)

​

Carleader 9 Inch 4CH AHD Inputs Quad Display Heavy Duty Vehicle Monitor combines advanced technology, reliable performance, and user-friendly design to meet the demanding requirements of modern monitoring applications. It is the perfect choice for professionals seeking a high-quality, cost-effective quad AHD monitoring solution.
