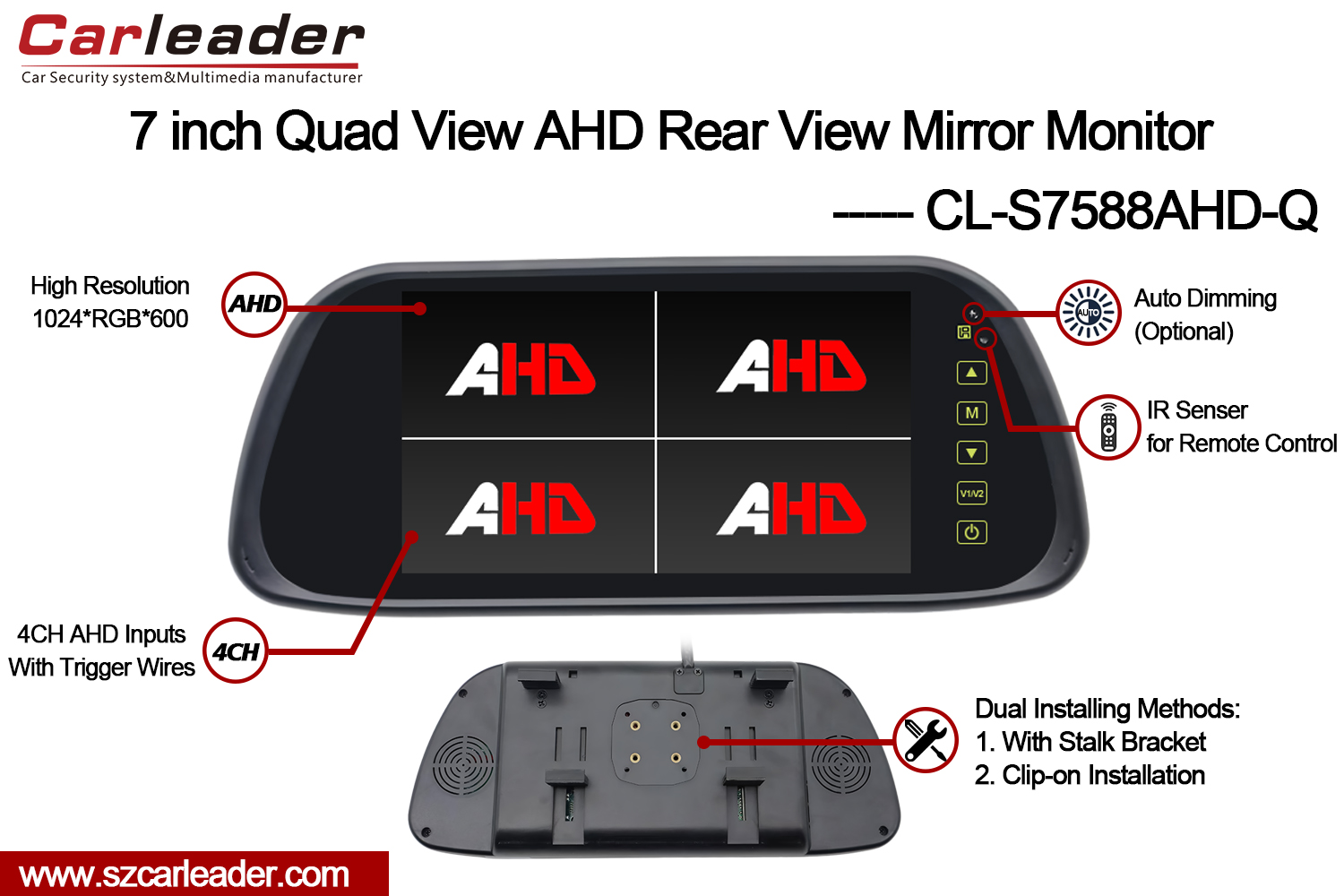

Experience superior clarity and versatility with Carleader 2 in 1 Installation 7 Inch Quad AHD Rearview Mirror Monitor, a cutting-edge 7-inch quad view AHD monitor designed for multi-camera vehicle systems. With 2 in 1 installation design for selectable installation solution. Features with advanced AHD technology, this monitor delivers crisp, real-time visuals across quad display four camera channels, ensuring maximum safety and situational awareness.
Key Features:
1. High-Resolution Display
7 inch digital panel with 16:9 aspect ratio.
Crystal clear resolution: 1024*RGB*600 pixels.
Brightness: 450 cd/m², Contrast: 500:1.
2. Quad AHD Camera Support
4 independent AHD video inputs (AHD1–AHD4), each channel with individual trigger wires.
Priority switching: AHD2 with trigger priority, AHD2>AHD1>AHD3>AHD4, ideal for seamless backup transitions.
Universal compatibility: Supports CVBS, AHD720P, AHD1080P (HD25/30fps), PAL/NTSC auto switch. Works with both AHD and CVBS cameras.
3. Intelligent Design
Auto-dimming function (optional): Reduces glare for nighttime driving.
Touch-button controls: Intuitive and easy to operate.
Dual installation method:
A. Stalk bracket: Use stalk bracket to replace the original mirror.
B. Clip-on bracket: Attach directly to original mirrors (no removal needed).
4. Robust Performance
Wide voltage range: DC 9~32V (available for most vehicles).
Compact dimensions: 26 × 11 × 4.7 cm (fits seamlessly in any cabin).
Why Choose Carleader 2 in 1 Installation 7 Inch Quad AHD Rearview Mirror Monitor?
Enhanced Driving Safety: Monitor multiple angles simultaneously—ideal for fleet vehicles, RVs, or commercial transport.
Plug-and-Play: Standard 4PIN aviation definition, easy integration with existing AHD/CVBS camera systems.
Driver-Centric: Glare-resistant screen and priority switching ensure critical views are never missed.
Perfect For: Transport fleets, commercial vehicles, RVs, and safety-conscious drivers seeking a high-definition, multi-camera monitoring solution.
Upgrade to the Carleader 2 in 1 Installation 7 Inch Quad AHD Rearview Mirror Monitor for unparalleled visibility, reliability, and peace of mind on the road.
