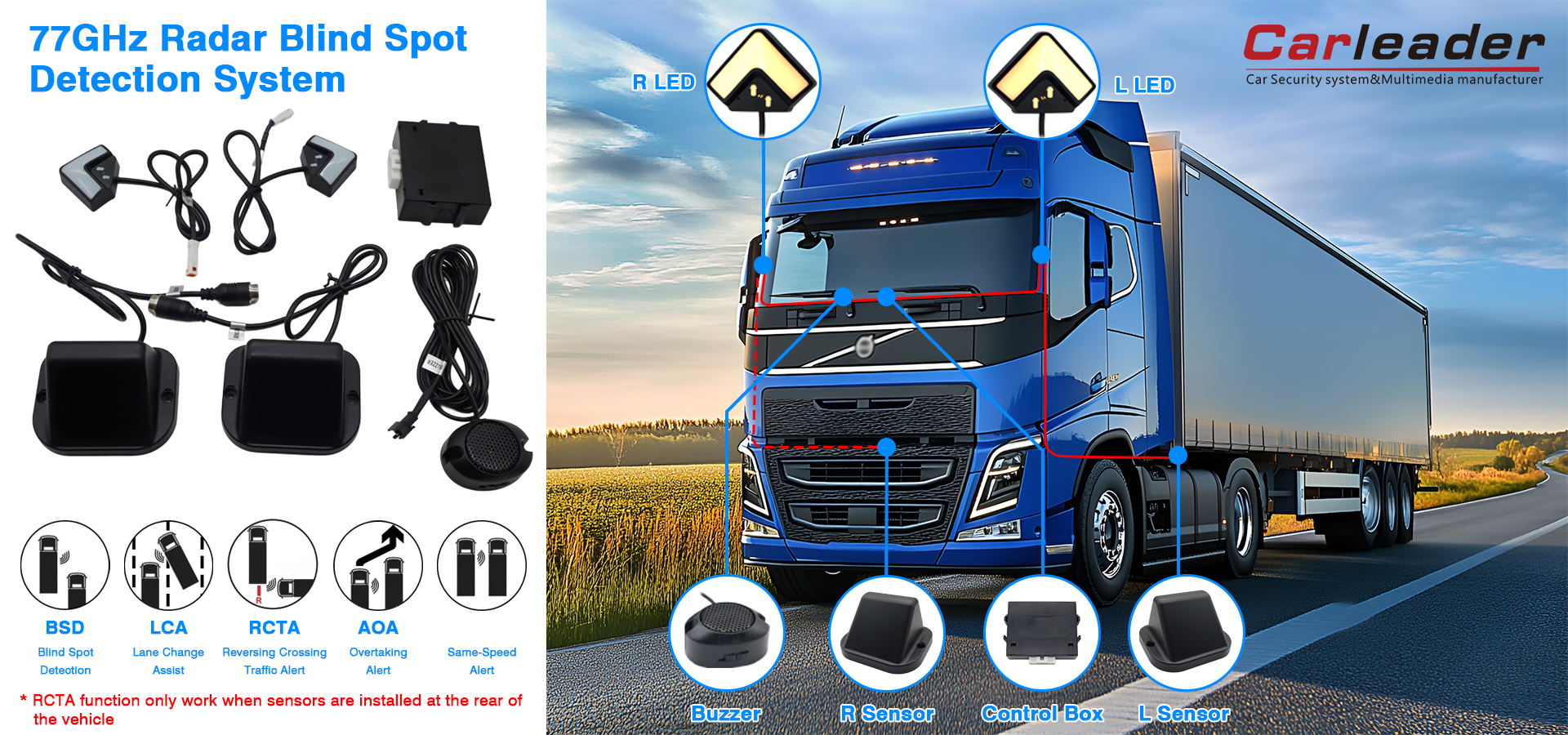

Carleader 77GHz BSD Blind Spot Detection System, a cutting-edge solution designed to eliminate blind spots and provide real-time alerts for safer lane changes and maneuvers. Utilizing advanced 77GHz microwave radar technology, this system delivers precise detection up to 20 meters behind and 3 meters laterally, ensuring comprehensive coverage for trucks, cars, motorcycles, and pedestrians.
Key Features:
Blind Spot Detection (BSD): A truck is driving forward normally, when the target vehicle in the rear pro-lane is higher than the speed of the truck into the blind spot monitoring area, Alerts drivers via LED indicators when vehicles enter blind zones during normal driving.
Lane Change Assist (LCA): The truck is driving forward normally, playing the right / left turn light state, ready to change lane, when the right / left rear pro-lane has a target car at a higher speed than the truck into the variable lane auxiliary monitoring area, Activates corresponding side of flashing LEDs and the buzzer will alarms.
Reversing Cross Traffic Alert (RCTA): Warns of approaching vehicles while reversing, with directional alerts for left/right threats. (This function is only used when the radar is installed in the rear of the truck, if it is installed at the side of the truck, do not connect the reverse trigger line when wiring)
Overtaking Alert (AOA): Monitors faster-moving vehicles entering your lane, providing visual and audible warnings.
Same-Speed Alarm: Detects vehicles lingering in blind spots at matching speeds, ensuring continuous awareness.
Technical Excellence:
Wide Detection Range: Covers 0.3–20m for vehicles, 0.3–10m for pedestrians.
Robust Performance: Operates in extreme temperatures (-20°C to +70°C) with IP67 waterproof rating.
Low Power Consumption: Works seamlessly at 9V–36V DC, drawing ≤400mA current.
Easy Installation & Reliability:

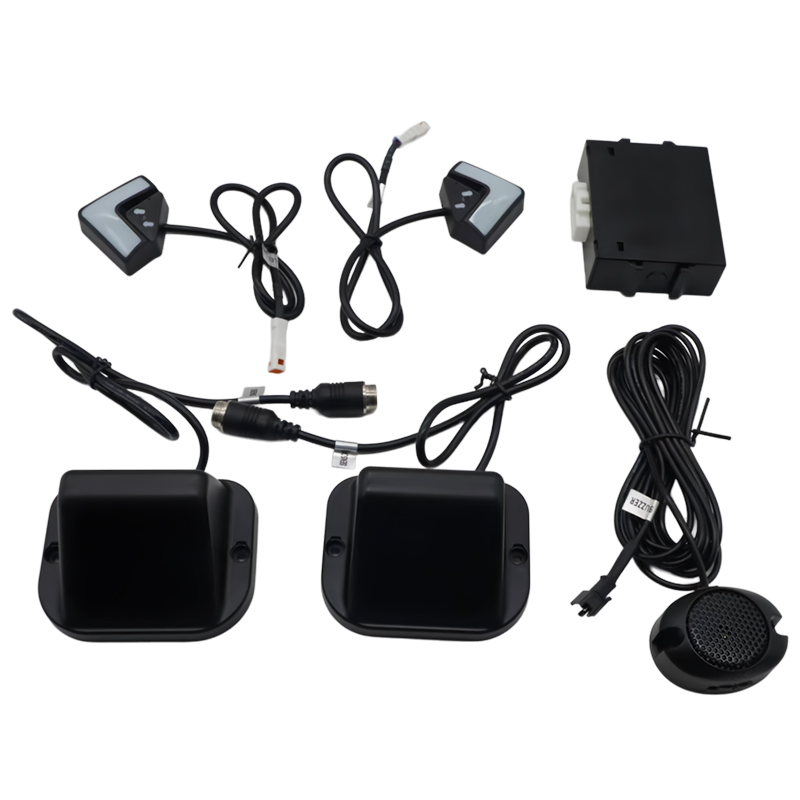

Pre-configured harnesses, labeled cables, and compact sensors (87.5x67.5x49mm) simplify integration into most vehicles. Follow intuitive wiring diagrams and mounting guidelines for hassle-free setup. The system auto-tests on startup, ensuring readiness within seconds.
Drive Confidently:
Designed for reliability and compliance with traffic safety standards, the BSD system is your vigilant co-pilot. Perfect for highways, urban roads, and tight maneuvers—stay aware, stay safe.
Upgrade Your Vehicle’s Safety Today—Because Every Blind Spot Matters.
