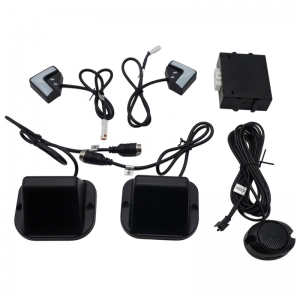

77GHz Radar Sensor Blind Spot Detection System, a cutting-edge solution designed to eliminate blind spots and provide real-time alerts for safer lane changes and maneuvers. Utilizing advanced 77GHz microwave radar technology, this system delivers precise detection up to 20 meters behind and 3 meters laterally, ensuring comprehensive coverage for trucks, cars, motorcycles, and pedestrians.
Key Features:
Blind Spot Detection (BSD): A truck is driving forward normally, when the target vehicle in the rear pro-lane is higher than the speed of the truck into the blind spot monitoring area, Alerts drivers via LED indicators when vehicles enter blind zones during normal driving.
Lane Change Assist (LCA): The truck is driving forward normally, playing the right / left turn light state, ready to change lane, when the right / left rear pro-lane has a target car at a higher speed than the truck into the variable lane auxiliary monitoring area, Activates corresponding side of flashing LEDs and the buzzer will alarms.
Reversing Cross Traffic Alert (RCTA): Warns of approaching vehicles while reversing, with directional alerts for left/right threats. (This function is only used when the radar is installed in the rear of the truck, if it is installed at the side of the truck, do not connect the reverse trigger line when wiring)
Overtaking Alert (AOA): Monitors faster-moving vehicles entering your lane, providing visual and audible warnings.
Same-Speed Alarm: Detects vehicles lingering in blind spots at matching speeds, ensuring continuous awareness.
Specification:
Support BSD, LCA, RCTA, AOA, Same-speed alarm function
Working Voltage: DC 9V～36V
Working Current: ≤400mA
Detection Speed Range: 1km/h～120km/h
Maximum Detection Range: Truck: 0.3m-20m
Vehicle: 0.3m-20m
Motorcycle: 0.3m-20m
Pedestrian: 0.3m-10m"
Buzzer Alarm Mode: LED + Buzzer Alarm
Horizontal Detection Angle: 120°
Working Temperature: -20℃~+70℃
Storage Temperature: -30℃~+80℃
Waterproof Level: IP67
Sensor Size: 87.5×67.5×49mm
