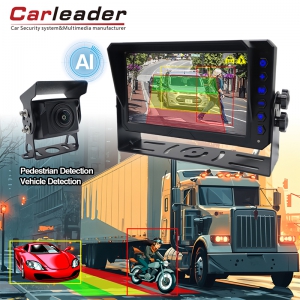

7 inch AI Pedestrian and Vehicle Detection Rear Camera System
Features:
1. 7 inch digital Panel, 1024xRGBx600 resolution, 720P AI camera 4PIN aviation input.
2. Built-in AI function setting menu to adjust detection zone, detect object, detection frame & icon, 6 alarm audio select, etc.
3. AI algorithm support select only pedestrian detection, only vehicle detection, pedestrian & vehicle detection.
4. Alarm will be more and more rapid, when enter different detection zone (Green, Yellow, Red).
Specification:
7’’ digital Innolux panel with 16:9 image
Resolution: 1024xRGBx600
All buttons with backlight.
1CH AHD 720P AI camera video input(2 inputs optional)
Video input format: D1/720P/1080P HD25/30fps PAL/NTSC
Brightness:450cd/m2
Contrast:500:1
Auto dimming function optional(CDS)
8 languages OSD, remote control
Built-in speaker
Monitor with built-in menu for AI function setting
Press and hold the "S" button for 6s to open the AI menu
Detection zone adjust
Detection zone color ON/OFF
Park guideline ON/OFF
Human/Vehicle detection ON/OFF
Human/Vehicle detection frame ON/OFF
Human/Vehicle detection Icon ON/OFF
Mirror image ON/OFF
Alarm audio select(6 types for option)
25FPS/30FPS for option
Detect Pedestrian/Vehicle/ Pedestrian & Vehicle
150° heat dissipation aluminum alloy chassis
Power supply: DC9V-32V
Undetachable sunshade
Standard "U" bracket. bracket is optional
Dimension:19.3x11.3x2.7cmcm( without shade)
19.3x11.3x5.2cm (with shade)
