Items Name |

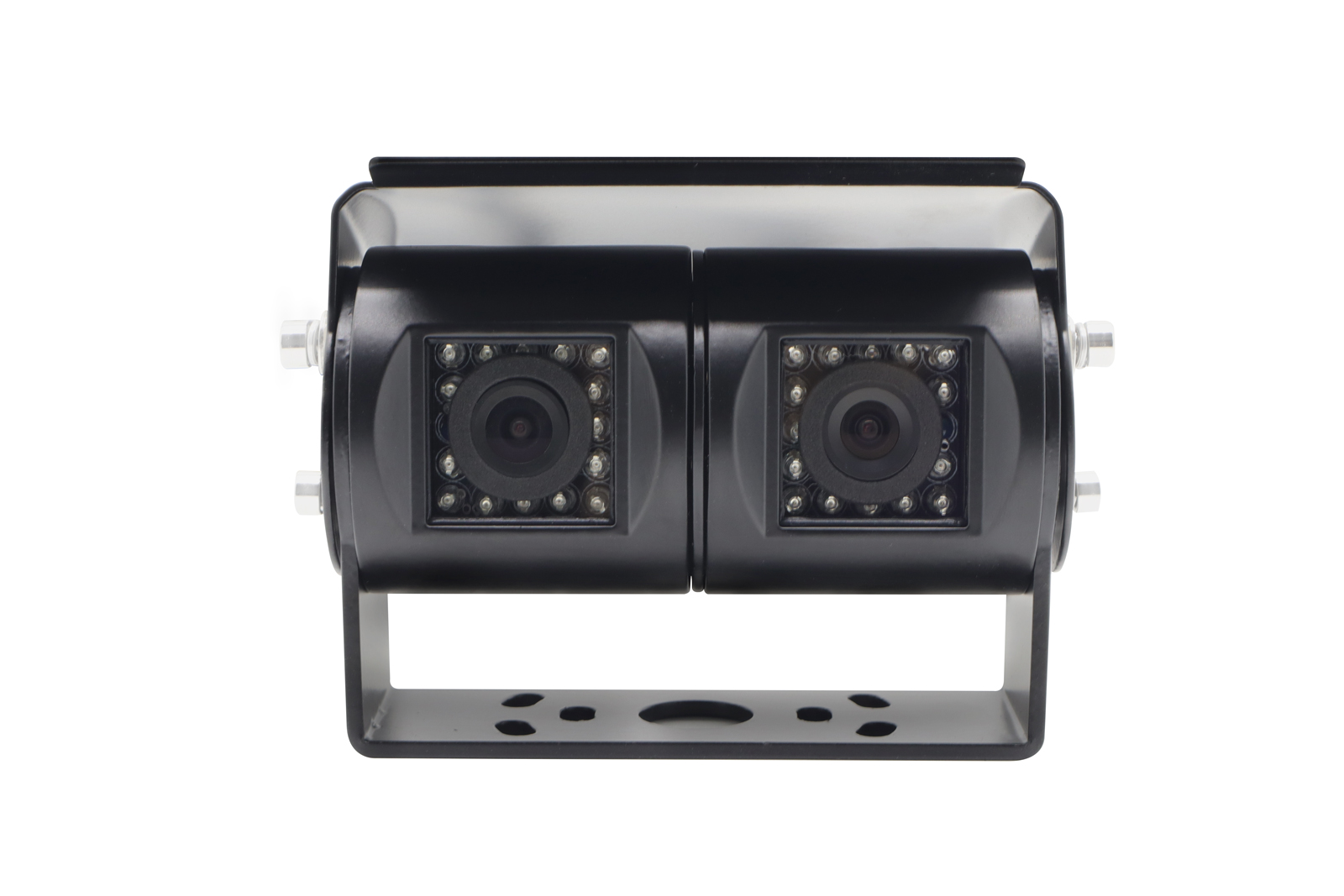

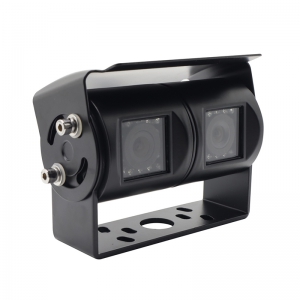

Dual lens reversing Camera |
|
Images Sensors |
1/3″CCD &1/4″CMOS |
|
Power supply |
DC 12V ±1 |
|
Resolution (TV Lines) |
600&700 |
|
Mirror |
Mirror image & non-mirrored image optional |
|
Electronic Shutter |
1/60(NTSC)/1/50(PAL)-1/10,000 |
|
Lux |
0.01 LUX (12 LED*2) |
|
Lens |
2.8mm |
|
Lens diameter |
One lens 2.8mm, one lens 3.6mm with large hole. |
|
S/N ratio |
≥48dB |
|
System |
PAL/NTSC optional |
|
View Angle |
120° |
|
Video Output |
1.0vp-p,75 ohm |
|
Ip Rating |
IP67-IP68 |
|
Operating Temperature (Deg. C) |
-20~+75(RH95% Max.) |
|
Outside shell |
Black(default), White (Optional) |
|
Storage Temperature (Deg. C) |
-30~+85(RH95% Max.) |
